LUMOTAST 25, emergency stop button, 2 NC, Gold, Male quick connector / plug-in socket, reset by pulling, Mushroom head red
Article number: 1.15.154.016/0301
Technical data
| Color of mushroom | red |
| Property of bezel / mushroom | opaque |
| Collar color | yellow |
| Collar shape | square |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| illuminated | No |
| Packaging | Box |
| Packaging unit | 2 pcs. |
| net weight | 9.5 g |
| Operating life | 15,000 cycles |
| B10 | 19,500 cycles |
| B10d | 39,000 cycles |
| Degree of protection, front side, according to DIN EN 60529 | IP65 |
| Minimum order quantity (MOQ) | 10 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 25 mm |
| Outside dimension, width | 25 mm |
| Outside dimension, height | 45.1 mm |
| Mounting hole | 16.2 mm |
| Mounting depth | 26.6 mm |
| Installation height | 18.5 mm |
| Actuation function | latching |
| Operating force, max. | 10 N |
| Operating travel, max. | 2.6 mm |
| Contact function | 2 NC |
| Contact system | Snap-action contact |
| Contact material | Gold |
| Resetting | by pulling |
| Fixing | Threaded ring |
| Threaded ring torque, max. | 0.8 Nm |
| Terminal on the rear | Male quick connector / plug-in socket |
| PIN 1 | Normally closed contact 1 |
| PIN 2 | Normally closed contact 2 |
| PIN 3 | Normally closed contact 1 |
| PIN 4 | Normally closed contact 2 |
| Rated voltage, min. |
|
| Rated voltage, max. | 25 V |
| Rated current, min. |
|
| Rated current, max. |
|
Drawings

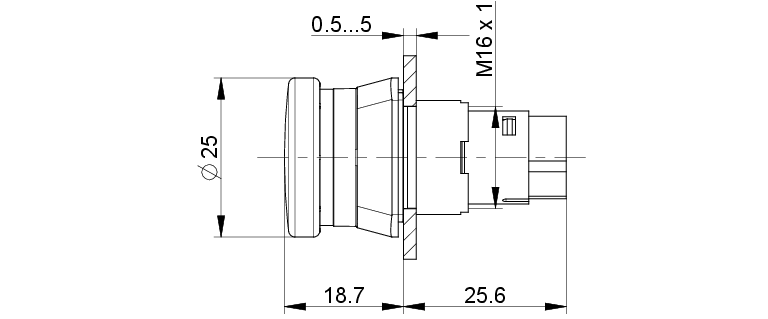

Dimensioned drawing

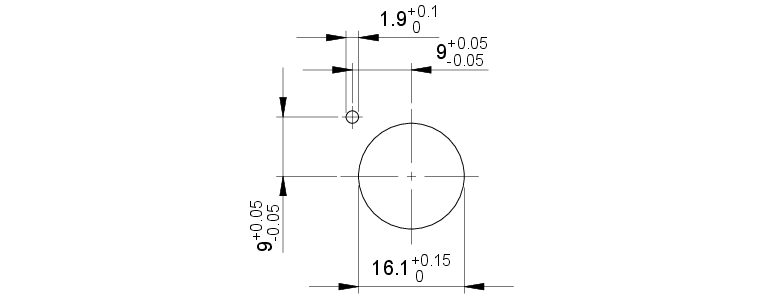

Mounting hole drawing
Schematic diagram
Description
The LUMOTAST 25 emergency stop buttons have proven themselves over decades. The familiar connection concept makes the LUMOTAST 25 emergency stop pushbutton your reliable component. These emergency stop buttons offer protection class IP 65 according to DIN and are also equipped with gold contacts.
3D viewer
Downloads
CAD_3D_L25-NH-1151540x6-25
CP65 Document

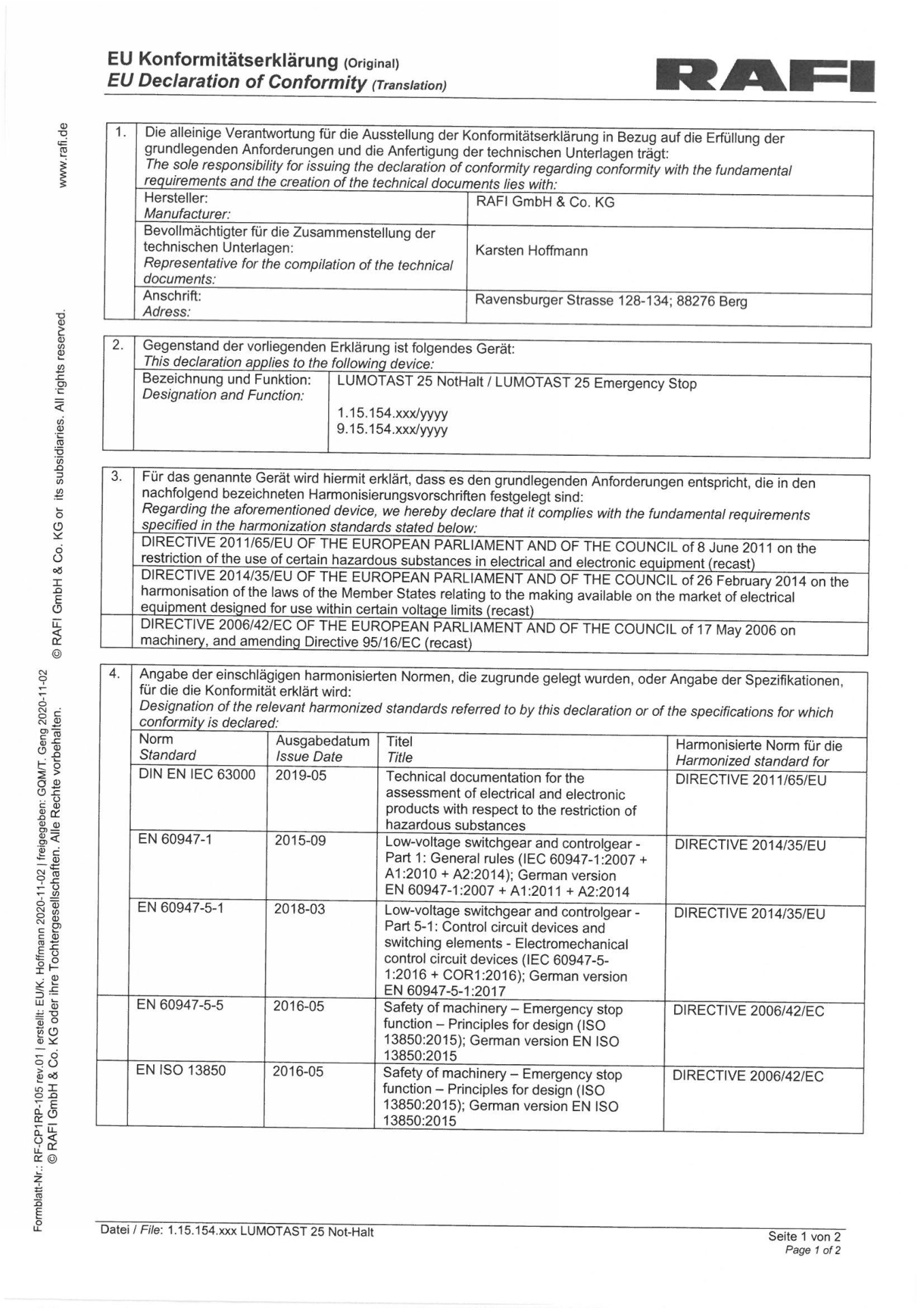

Declaration of conformity
POP Document
RoHS
SVHC Document
TSCA Document

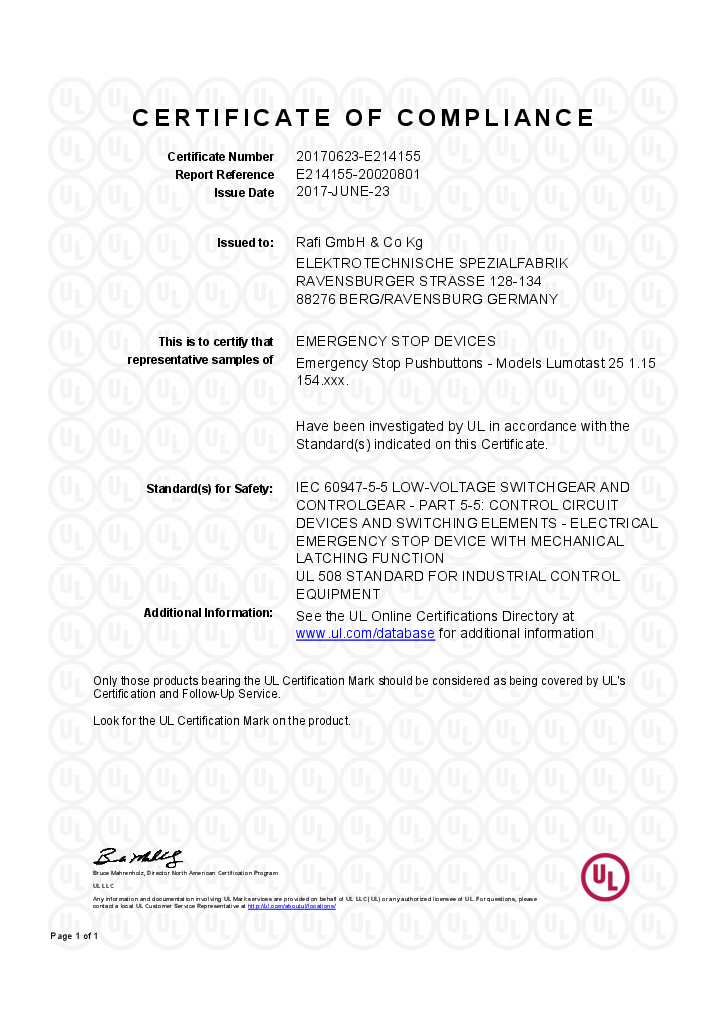

UL certificate
