LUMOTAST 16 front ring, C-LAB, Metal
Article number: 5.00.888.510/8100
Technical data
| Color | Metal |
| Packaging unit | 10 pcs. |
| net weight | 0.4 g |
| MOQ order | 10 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 23.5 mm |
| Outside dimension, width | 23,5 mm |
| Outside dimension, height | 4.6 mm |
Drawings

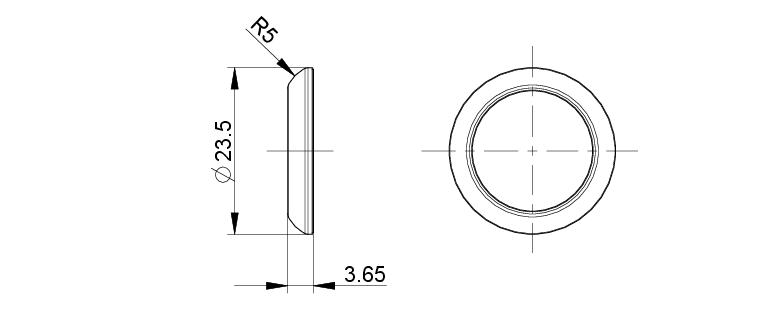

Dimensioned drawing
Description
The LUMOTAST 16 front rings are used to attach the C-LAB bezels to the LUMOTAST 16 pushbuttons and illuminated pushbuttons.
Main areas of application
- Measurement-control-regulation
- Mechanical and system engineering
- Signalling systems
- Vehicle construction
- Handheld terminals
- Model construction
