RAFIX 22 FS⁺, keylock switch, round collar, frontring black, 1 x 90°, shape V, latching, key removal position 0+1

Article number: 1.30.255.321/0100

Discontinued

Technical data

General
Disassembly possible	no
Scope of delivery	2 keys
Front ring color	black
Collar shape	round
Operating temperature, min.	-25 °C
Operating temperature, max.	70 °C
Storage temperature, min.	-40 °C
Storage temperature, max.	80 °C
illuminated	No
Packaging	Box
Packaging unit	2 pcs.
net weight	20.6 g
Operating life	50,000 cycles
B10	65,000 cycles
Degree of protection, front side, according to DIN EN 60529	IP65
UL Enclosure Type Rating front side	type 1 type 4X indoor
Environment resistance	IEC 60068-2-14 IEC 60068-2-30 IEC 60068-2-33 IEC 60068-2-78
Salt-spray resistance according to standard	IEC 60068-2-11
MOQ order	10 pcs.
RoHS compliant	Yes
REACH compliant	Yes

Mounting dimensions
Outside dimension, length	29.8 mm
Outside dimension, width	29.8 mm
Outside dimension, height	33.8 mm
Mounting hole	22.3 mm
Mounting depth	9.2 mm
Installation height	25.2 mm
Grid, min.	30 x 30 mm
Collar dimension	ø 29,8 mm
Mechanical characteristics
Actuation function	latching
Operating torque, max.	1.3 Nm
Locking position	1
Key removal position	0+1
Rotating angle	1 x 90°, shape V
Fixing	Threaded ring
Threaded ring torque, max.	1.2 Nm

Drawings

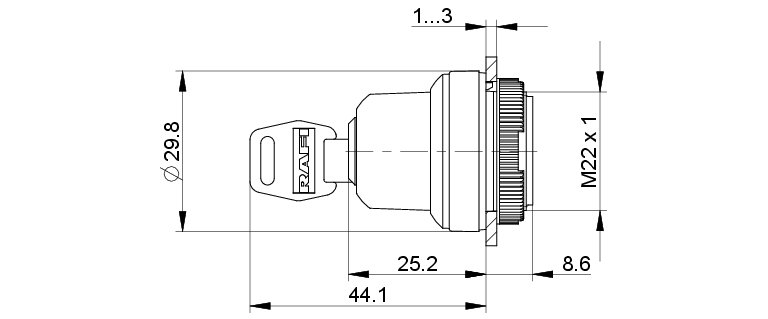

Dimensioned drawing

System drawing

Mounting hole drawing

front panel drawing

Description

RAFIX control devices are defined at RAFI as modular elements, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit.

Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements.

The locking systems we use have been created by reputable lock manufacturers in accordance with the DIN EN 1303 standard. They are open, mechanical systems that require occasional maintenance by the operator depending on the ambient conditions.

Further locking positions or functions are available on request.

Main areas of application

Measurement-control-regulation
Electrical engineering
Mechanical and system engineering
Vehicle construction
Handheld terminals
Industrial robots

Special features

Key switch standard
Low installation depth 9.2 mm (PCB) or 27 mm (QC)
Connection types: printed circuit board connection (PCB) or plug-in connection (QC)
PCB switching elements minimize mounting errors
Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
Design adaptation through different front ring variations
Degree of protection: IP 65 at the front
Two collar shapes: round and square
