LUMOTAST 25, keylock switch, 1 removal position, 1 NO, Gold, Male quick connector / plug-in socket, 90°, latching, key removal position 0
Article number: 1.15.156.001/0000
Discontinued
Technical data
| Bezel color | black |
| Property of bezel / mushroom | opaque |
| Collar shape | square |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| illuminated | No |
| Packaging | Box |
| Packaging unit | 2 pcs. |
| Operating life | 50,000 cycles |
| Degree of protection, front side, according to DIN EN 60529 | IP65 |
| Minimum order quantity (MOQ) | 2 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Country of origin | HU |
| Outside dimension, length | 25 mm |
| Outside dimension, width | 25 mm |
| Mounting hole | 16.2 mm |
| Mounting depth | 30.7 mm |
| Installation height | 32.3 mm |
| Key removal position | 0 |
| Terminal on the rear | Male quick connector / plug-in socket |
| Number of locking positions | 10,000 |
| Fixing | Threaded ring |
| Actuation function | latching |
| Operating torque, max. | 1.5 Nm |
| Rotating angle | 90° |
| Contact function | 1 NO |
| Contact system | Snap-action contact |
| Contact material | Gold |
| Locking | 10000 |
| Rated voltage, min. |
|
| Rated voltage, max. | 35 V |
| Rated current, min. |
|
| Rated current, max. |
|
Drawings

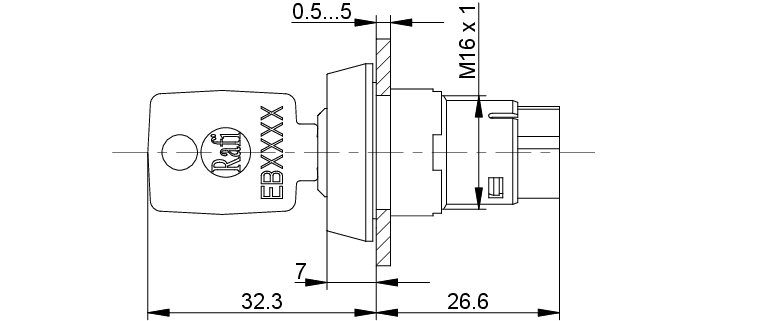

Dimensioned drawing
Mounting hole drawing
Description
lock manufacturer Kaba
3D viewer
Downloads
CAD_3D_L25-115156001-02
CP65 document

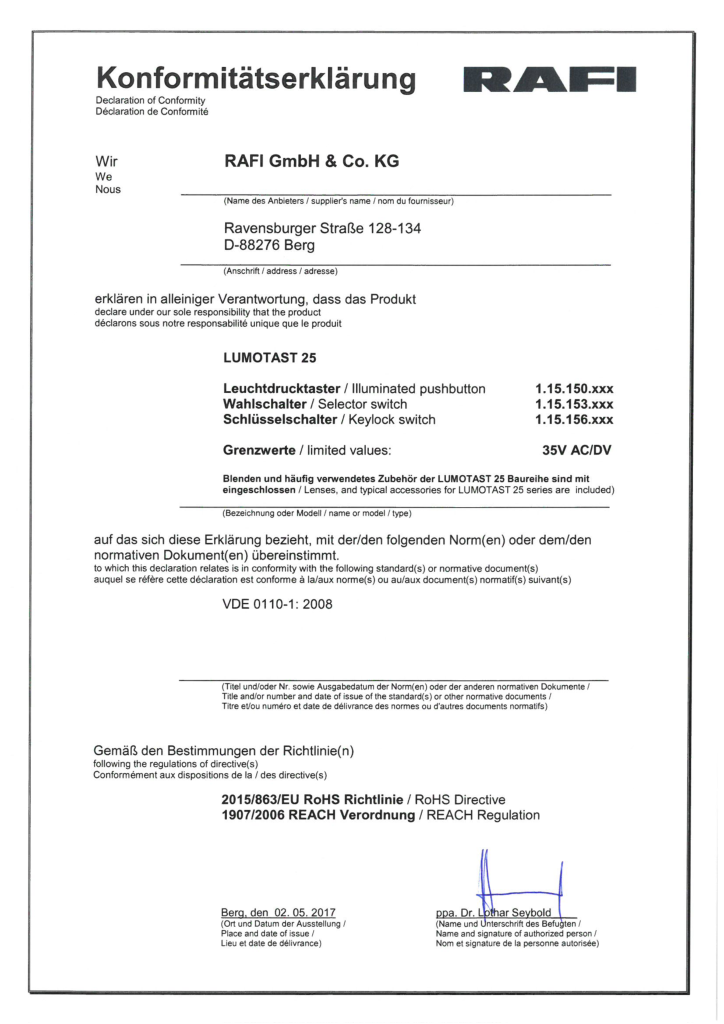

Declaration of conformity
POP document
RoHS
SVHC document
TSCA document

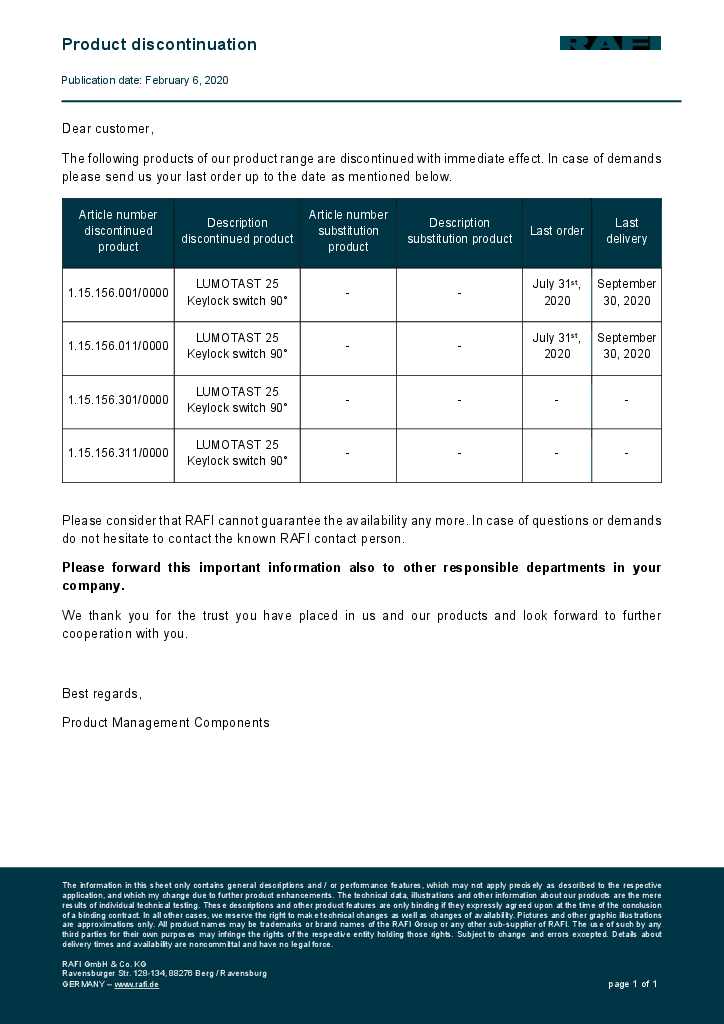

Product discontinuation
