LUMOTAST 25, selector switch, threaded ring, latching, 1 NO, Gold, Male quick connector / plug-in socket, 1 x 90°, latching
Article number: 1.15.153.106/0100
Discontinued
Technical data
| Collar shape | square |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| illuminated | No |
| Packaging | Box |
| Packaging unit | 2 pcs. |
| Operating life | 500,000 cycles |
| Degree of protection, front side, according to DIN EN 60529 | IP65 |
| Minimum order quantity (MOQ) | 2 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Country of origin | HU |
| Outside dimension, length | 25 mm |
| Outside dimension, width | 25 mm |
| Mounting hole | 16.2 mm |
| Mounting depth | 30.7 mm |
| Installation height | 17 mm |
| Terminal on the rear | Male quick connector / plug-in socket |
| Fixing | Threaded ring |
| Actuation function | latching |
| Operating torque, max. | 1.5 Nm |
| Rotating angle | 1 x 90° |
| Contact function | 1 NO |
| Contact material | Gold |
| Rated voltage, min. |
|
| Rated voltage, max. | 35 V |
| Rated current, min. |
|
| Rated current, max. |
|
Drawings
Dimensioned drawing
Mounting hole drawing
Description
Downloads
CP65 document
Declaration of conformity
POP document
RoHS
SVHC document
TSCA document

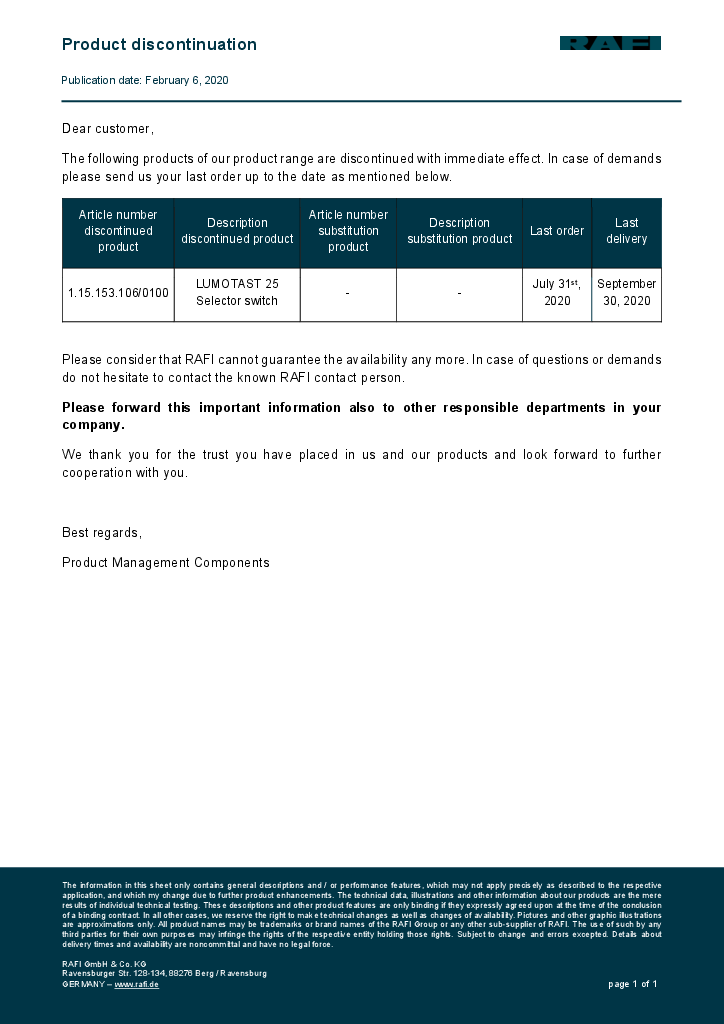

Product discontinuation
Distributor Inventory Search
Optional accessories
LUMOTAST FK/25, plug-in socket for PCB
LUMOTAST FK/25, ribbon cable
LUMOTAST FK/25, female quick connector
