RAFIX 22 FSR, signal lamp, round collar, lamp red / green, bezel white, Flat quick-connect terminal 2.8 x 0.8

Article number: 1.74.509.111/2200

Discontinued

Technical data

General
Bezel color	white
Property of bezel / mushroom	translucent
Collar color	stainless steel
Luminous element color	red / green
Collar shape	round
Operating temperature, min.	-25 °C
Operating temperature, max.	60 °C
Storage temperature, min.	-40 °C
Storage temperature, max.	80 °C
illuminated	Yes
Packaging	Box
Packaging unit	10 pcs.
Net weight	10.5 g
Degree of protection, front side, according to DIN EN 60529	IP65 IP67 IP69
Minimum order quantity (MOQ)	10 pcs.
RoHS compliant	Yes
REACH compliant	Yes
Country of origin	HU
Mounting dimensions
Outside dimension, length	31.3 mm
Outside dimension, width	31.3 mm
Outside dimension, height	37.65 mm
Mounting hole	22.3 mm
Mounting depth	25.45 mm
Installation height	12.2 mm
Grid, min.	32 x 32 mm
Mechanical characteristics
Terminal on the rear	Flat quick-connect terminal 2.8 x 0.8
Solderability	No

Electrical characteristics
Operating voltage of the luminous element, min.	8 V
Operating voltage of the luminous element, max.	30 V
Voltage type	DC
Rated operating voltage	8-30 V
Power loss	0.39000 W
Specifications according to UL 60947
UL Enclosure Type Rating front side	type 1 type 4X indoor

Drawings

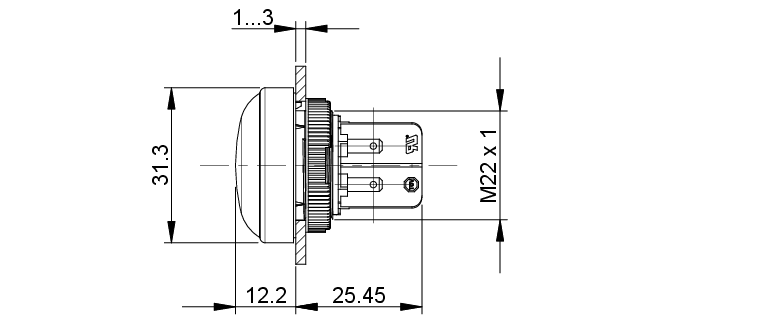

Dimensioned drawing

System drawing

Mounting hole drawing

Connection drawing

Description

Separate 2.8 x 0.8 mm plug-in connections and integrated reverse polarity protection allow three signaling states to be displayed in one lamp. This means that only one signal lamp is required where previously three were needed.

Illumination LED red / LED green
Operating voltage min. 8 ... max. 30 V DC -
Integrated reverse polarity protection

Use according to UL:

RAFIX control devices are defined at RAFI as modular elements, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit.

Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements.
