LUMOTAST 25, signal lamp 24 V, click quick fastener, housing, Male quick connector / plug-in socket
Article number: 1.65.122.906/0000
Discontinued
Technical data
| Collar shape | square |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| illuminated | Yes |
| Lamp socket | Bi-pin |
| Packaging | Box |
| Packaging unit | 5 pcs. |
| Degree of protection, front side, according to DIN EN 60529 | IP65 |
| Minimum order quantity (MOQ) | 5 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Country of origin | HU |
| Outside dimension, length | 25 mm |
| Outside dimension, width | 25 mm |
| Mounting hole | 16.2 mm |
| Mounting depth | 30.7 mm |
| Installation height | 9.8 mm |
| Terminal on the rear | Male quick connector / plug-in socket |
| Fixing | Click quick fastener |
Drawings

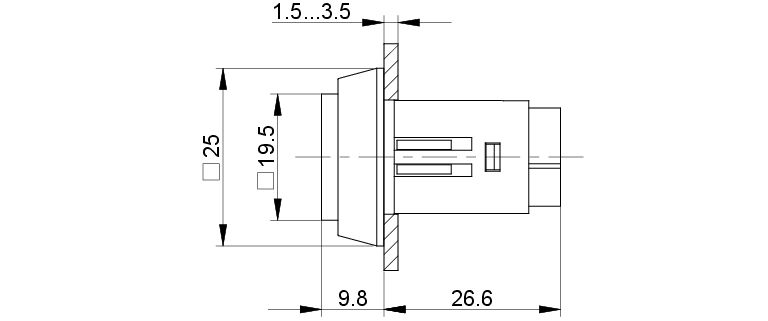

Dimensioned drawing
Mounting hole drawing
Description
Downloads
CP65 document
Declaration of conformity
POP document
RoHS
SVHC document
TSCA document
Product discontinuation
Distributor Inventory Search
Optional accessories
LUMOTAST FK/25, plug-in socket for PCB
LUMOTAST FK/25, ribbon cable
LUMOTAST FK/25, female quick connector
