LUMOTAST 75 IP40, signal lamps, square collar, flat bezel, Solder terminal
Article number: 1.65.111.064/0000
Discontinued
Technical data
| Collar color | light gray |
| Collar shape | square |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| illuminated | Yes |
| Lamp socket | T4.5 |
| Packaging | Box |
| Packaging unit | 10 pcs. |
| Degree of protection, front side, according to DIN EN 60529 | IP40 |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Country of origin | HU |
| Outside dimension, width | 18 mm |
| Mounting hole | 16.2 mm |
| Mounting depth | 33.5 mm |
| Installation height | 7.5 mm |
| Terminal on the rear | Solder terminal |
| Fixing | Threaded ring |
| Solderability | Yes |
Drawings

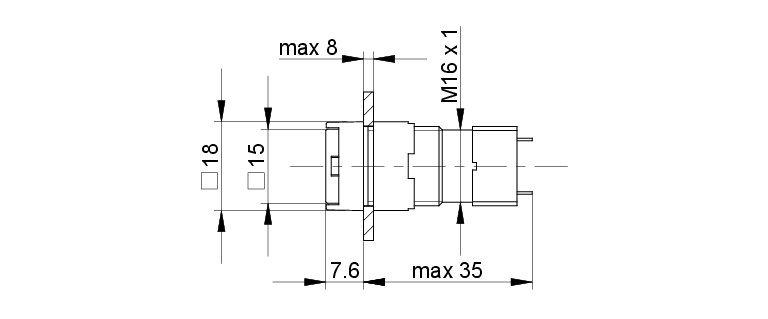

Dimensioned drawing
Mounting hole drawing
Description
The LUMOTAST 75 IP 40 signal lamps have proven themselves over decades. The well-known connection and labeling concept make the LUMOTAST 75 IP 40 series your reliable component. These signal lamps offer protection class IP 40 according to DIN.
Downloads
CCC certificate
CP65 document
CSA certificate

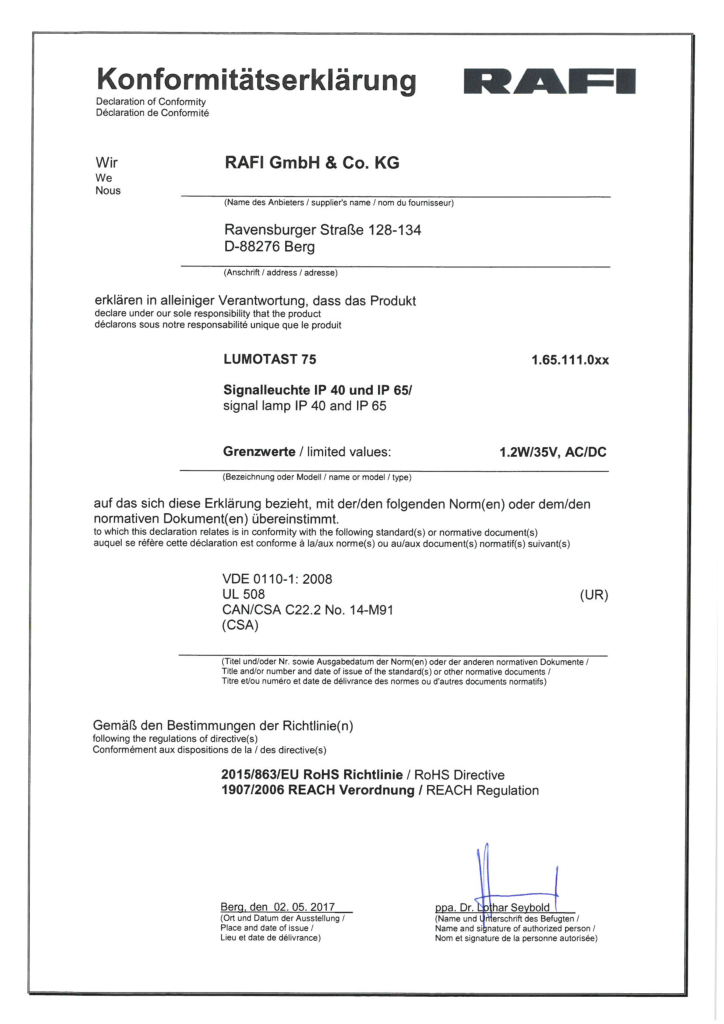

Declaration of conformity
POP document
RoHS
SVHC document
TSCA document
UL certificate
Distributor Inventory Search
Required accessories
Bezel, IP40 square
Diffusing lens, square
LED, socket T 4.5
Optional accessories
LUMOTAST 75, blanking caps
