Signal lamp with lamp socket, E 14, 22.3 mm, IP65, housing, 250 Volt, Nickel-plated screw terminal
Article number: 1.61.012.299/0000
Discontinued
Technical data
| Bezel shape | round |
| illuminated | Yes |
| Lamp socket | E 14 |
| Packaging unit | 10 pcs. |
| Degree of protection, front side, according to DIN EN 60529 | IP40 |
| Minimum order quantity (MOQ) | 10 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Mounting hole | 22.3 mm |
| Mounting depth | 46 mm |
| Installation height | 14 mm |
| Collar dimension | 28 mm |
| Terminal on the rear | Nickel-plated screw terminal |
| Fixing | Threaded ring |
| Operating voltage of the luminous element, max. | 250 V |
Drawings

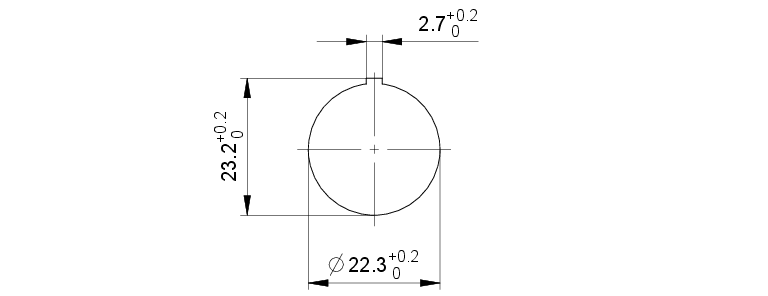

Mounting hole drawing
Description
Signal lamps for LEDs or filament/neon lamps with E 14 socket, mounting hole diameter 22.3 mm
3D viewer
Downloads
CAD_3D_SL-LED-161012015--04
CAD_3D_SL-LED-161012062--03
CP65 document

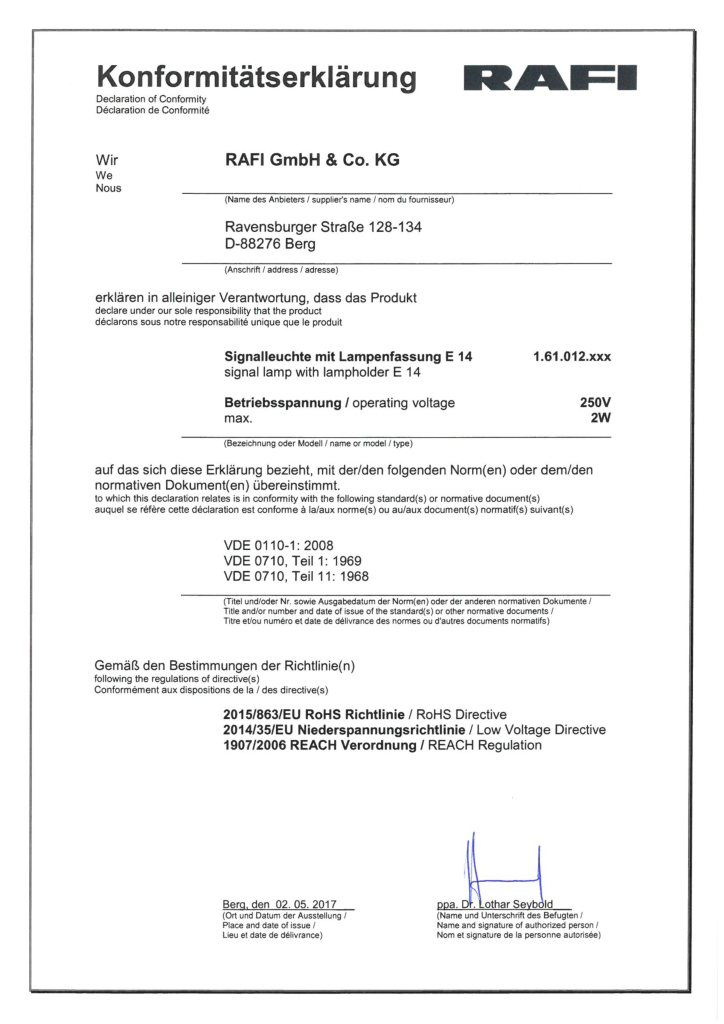

Declaration of conformity
POP document
RoHS
SVHC document
TSCA document
Distributor Inventory Search
Required accessories
Bezel, 22.3 mm, with front ring
Bezel, 22.3 mm, screw-on lens
Filament lamp, socket E14
Neon lamp, socket E14
