TILTED DIAMOND+3 signal lamp, lamp red / yellow / green, 24 Volt, bezel transparent, M12 4-pin A-coded
Article number: 1.69.010.005/0000
Technical data
| Color | black |
| Bezel color | transparent |
| Property of bezel / mushroom | transparent |
| Luminous element color | red / yellow / green |
| Bezel shape | convex |
| Collar shape | round |
| Operating temperature, min. | -30 °C |
| Operating temperature, max. | 60 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| illuminated | Yes |
| Luminous elements | LED |
| Packaging | Box |
| Packaging unit | 1 pcs. |
| Net weight | 62.2 g |
| Degree of protection, front side, according to DIN EN 60529 |
IP66
IP67 |
| Degree of protection, rear side, according to DIN EN 60529 | IP65 |
| Impact resistance IK |
08 side
08 frontal |
| Minimum order quantity (MOQ) | 10 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Country of origin | HU |
| Outside dimension, length | 56.8 mm |
| Outside dimension, width | 56.8 mm |
| Outside dimension, height | 84.6 mm |
| Mounting depth | 14.5 mm |
| Installation height | 70.1 mm |
| Collar dimension | 56.8 mm |
| Terminal on the rear | M12 4-pin A-coded |
| Fixing | Screw |
| PIN 1 | LED red |
| PIN 2 | LED green |
| PIN 3 | GND |
| PIN 4 | LED yellow |
| Operating voltage of the luminous element, min. | 20 V |
| Operating voltage of the luminous element, max. | 28 V |
| Voltage type | DC |
| Rated operating voltage | 20-28 V |
| Power loss | 2.18680 W |
Drawings
Dimensioned drawing
System drawing
Mounting hole drawing

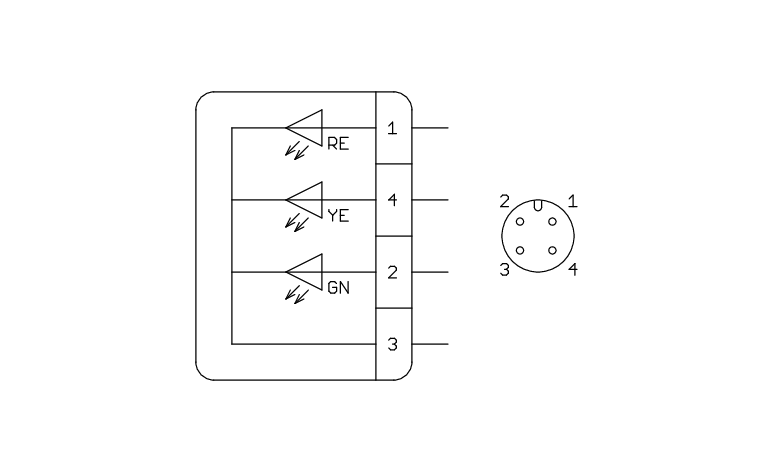

Schematic diagram
Description
RAFI has further refined the Tilted Diamond signal lamp, developed in collaboration with Luigi Colani. The result: Tilted Diamond+, which is also very easy to assemble, thanks to the M12 or CAGE CLAMP® terminal.
To achieve outstanding illumination, we have optimized the light refraction. Its uniform, all-round high visibility makes the signal lamp even easier to see from a distance, so you can respond even faster in an emergency. In line with everyday requirements in industrial environments, this signal lamp is especially sustainable and shock-resistant. In addition, the bright LEDs are energy efficient and do not have to be replaced. The resulting overall package, for many fields of application, will exceed your expectations.
3D viewer
Downloads
CAD_3D_SL-LED-169010003-13
CP65 document

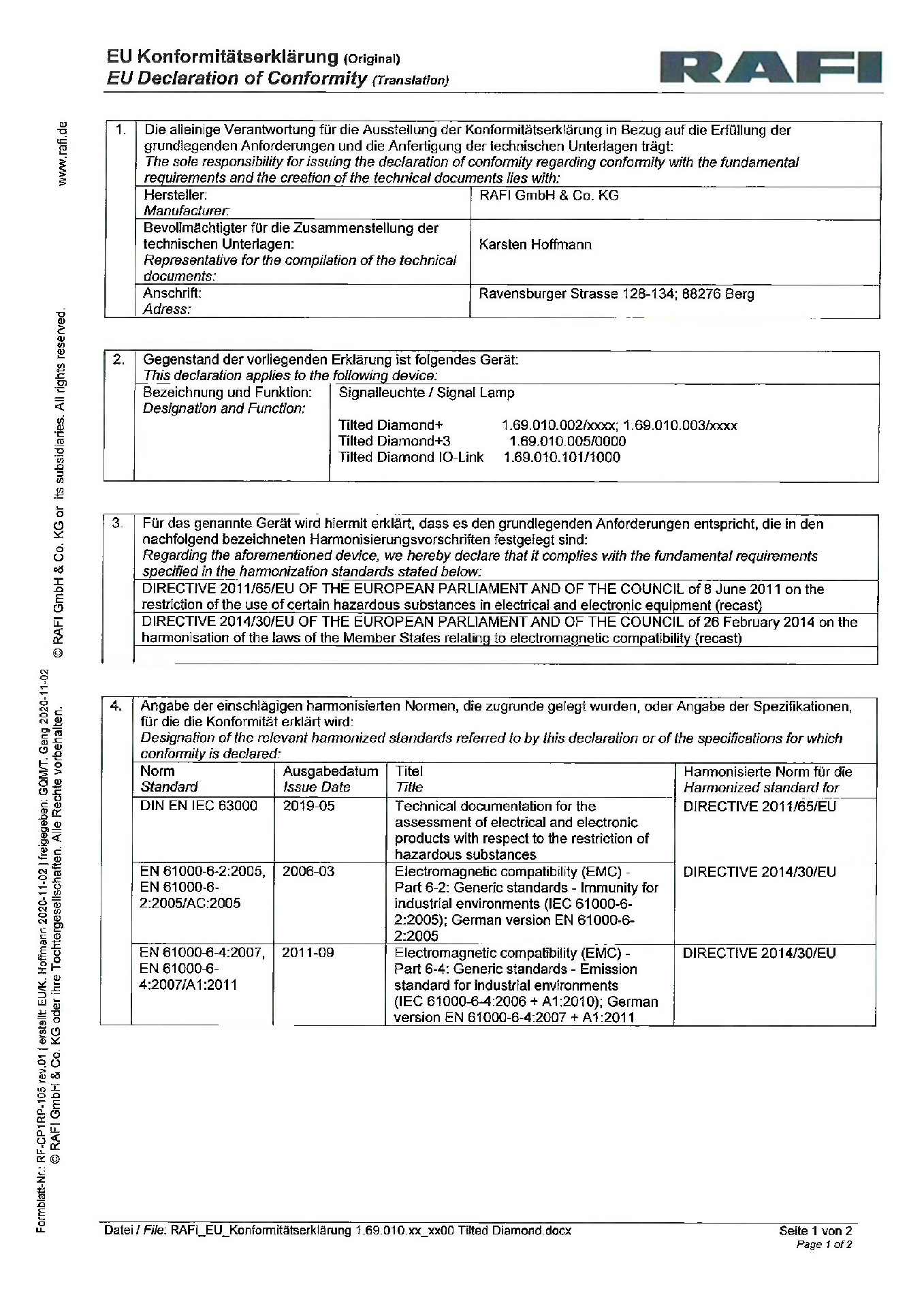

Declaration of conformity
POP document
RoHS
SVHC document
TSCA document

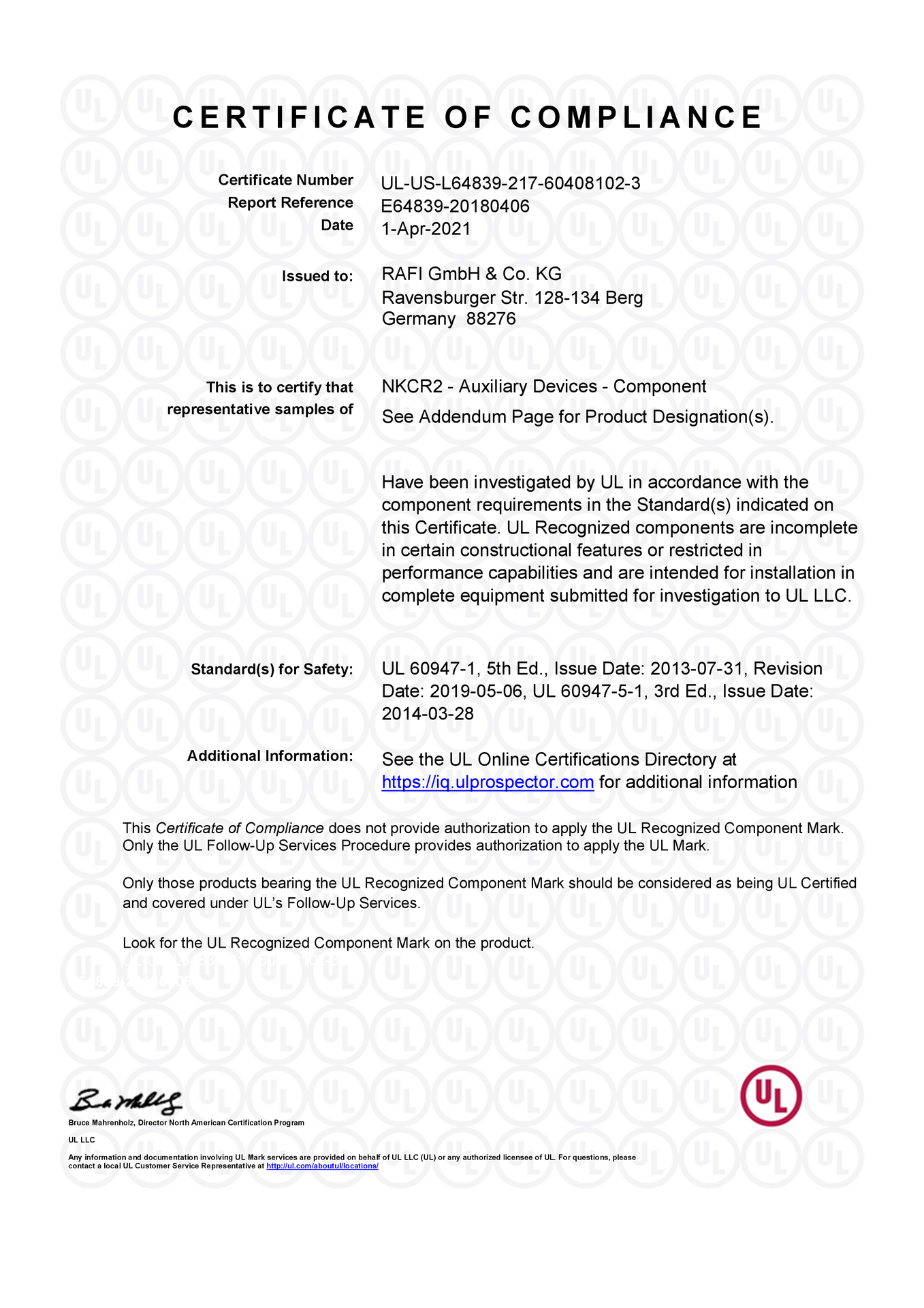

UL certificate
