KN 19, 1NO + 1NC, 9.0 ± 3.0 N

Article number: 1.12.000.001/0000

Technical data

General
Operating temperature, min.	-25 °C
Operating temperature, max.	70 °C
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
illuminated	Yes
Luminous elements	LED
Soldering time for manual soldering, max.	3 sec
Soldering temperature for manual soldering	350 °C
Soldering	wave soldering according to DIN EN 61760-1
Packaging	Tube
Packaging unit	12 pcs.
net weight	9 g
Operating life electrical	100,000 (6A / 250V AC) cycles 50,000 (10A / 50V DC) cycles
B10 electrical	130.000 (6A / 250V AC) cycles 65.000 (10A / 50V DC) cycles
Degree of protection, front side, according to DIN EN 60529	IP40
Minimum order quantity (MOQ)	12 pcs.
RoHS compliant	Yes
REACH compliant	Yes
Mounting dimensions
Outside dimension, length	37.8 mm
Outside dimension, width	18.8 mm
Outside dimension, height	9.7 mm
Installation height	9.7 mm
Grid, min.	19.05 x 38.1 mm
Mechanical characteristics
Actuation function	latching
Operating force, max.	100 N
Operating force, min.	9 ± 3.0 N
Switching travel	0,55^±0,15 mm
Bounce time at 10 mm/s	<10 ms
Contact function	1 NC + 1 NO
Contact system	Bridge-snap-action contact
Contact material	Silver
Fixing	Soldering
Solderability	Yes
Terminal on the rear	THT

Electrical characteristics
Rated voltage, min.	12 V
Rated voltage, max.	250 V
Rated current, min.	0.1 A
Rated current, max.	6 A
Rated power, max. DC	250 W

Drawings

Dimensioned drawing

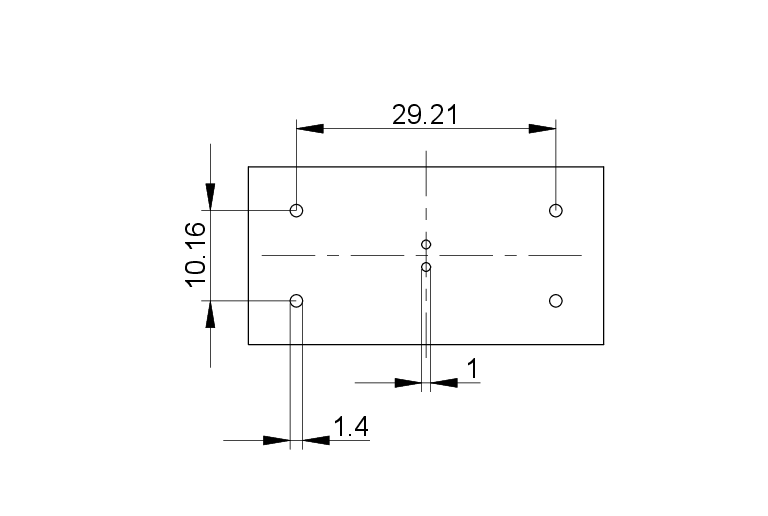

PCB drawing

Schematic diagram

Description

KN 19 offers the possibility of integrating the mains switch (250 V / 6A) directly into the low-profile data entry system. This means there is no need for extra switches on the device and therefore no additional openings in the overlay. This enables optimal device safety and uniform design. The contact opening widths comply with the VDE guidelines. The KN 19 can also be used under RK 90 keycaps.
