C-LAB bezel, pushbutton, translucent, white, 17.8 mm x 17.8 mm
Article number: 5.55.106.171/0200
Technical data
| Bezel color | white |
| Property of bezel / mushroom | translucent |
| Bezel shape | round |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| Packaging unit | 10 pcs. |
| MOQ order | 10 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 17.8 mm |
| Outside dimension, width | 17.8 mm |
| Outside dimension, height | 2.3 mm |
Drawings

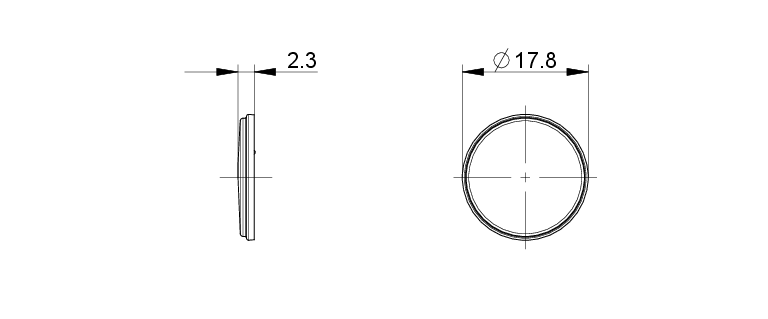

Dimensioned drawing
Description
The C-LAB bezels are used for insertion into the LUMOTAST 16 pushbuttons or illuminated pushbuttons. The C-LAB bezels are fixed with the LUMOTAST 16 front rings.
Main areas of application
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Signalling systems
- Handheld terminals
- Industrial robots
- Model construction
