RAFIX insulated housing 22 mm, 2 mounting positions, light gray
Article number: 1.20.820.201/0000
Technical data
| Installation points | 2 pcs. |
| Color | light gray |
| Packaging unit | 1 pcs. |
| net weight | 200 g |
| Degree of protection, front side, according to DIN EN 60529 | IP65 |
| Degree of protection, rear side, according to DIN EN 60529 | IP65 |
| MOQ order | 5 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 100 mm |
| Outside dimension, width | 115 mm |
| Outside dimension, height | 74 mm |
| Mounting hole | 22.3 mm |
Drawings

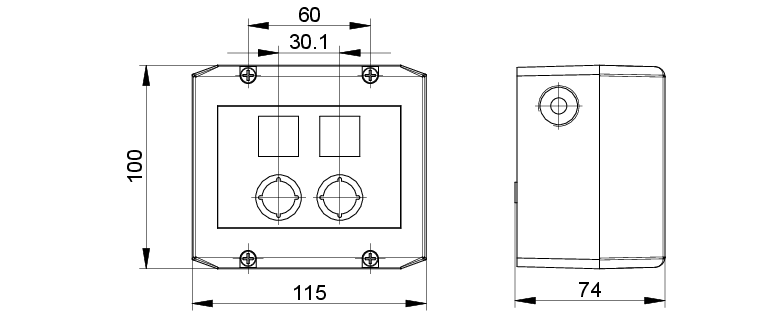

Dimensioned drawing
Description
Main areas of application
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Industrial robots
3D viewer
Downloads
CAD_3D_RAFIX-22-FS-120820201
CP65 Document
POP Document
RoHS
SVHC Document
TSCA Document
Optional accessories
Labelling sheet for housings
