C-LAB, labelling sheet, transparent

Article number: 5.70.800.203/0000

Technical data

General

Color transparent
illuminated Yes
Packaging unit 1 pcs.
net weight 11.3 g
MOQ order 1 pcs.
RoHS compliant Yes
REACH compliant Yes

Mounting dimensions

Outside dimension, length 297 mm
Outside dimension, width 210 mm
Outside dimension, height 1 mm

Drawings

Dimensioned drawing

Description

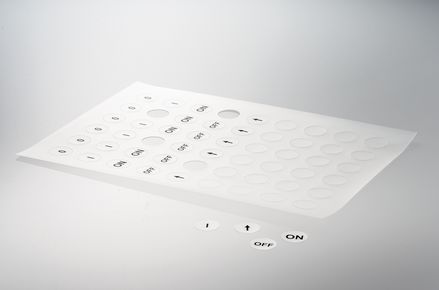

C-LAB offers the possibility to label the LUMOTAST 16 illuminated pushbuttons individually. A DIN A4 inscription sheet with pre-cut labels is offered for this purpose, which can be printed with standard office laser printers. The printing takes place on the side with the smooth surface. When selecting paper in the printer, foil should be selected if possible. After printing, the inlays can be separated from the sheet and inserted into the LUMOTAST 16 insert adapter with the aid of a locking surface. The insert adapter can then be inserted into the transparent cover along with the lettering insert.

Alternatively, RAFI also offers printing of the C-LAB lenses.
