MICON 5, indicator field plunger, L 11 mm, 1-part
Article number: 5.05.005.182/2200
Technical data
| Installation points | 1 pcs. |
| illuminated | Yes |
| Packaging unit | 100 pcs. |
| Net weight | 0.3 g |
| Minimum order quantity (MOQ) | 100 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Country of origin | DE |
| Outside dimension, length | 11 mm |
| Outside dimension, width | 11 mm |
| Outside dimension, height | 10.45 mm |
| Total height GH | 9.25 mm |
Drawings

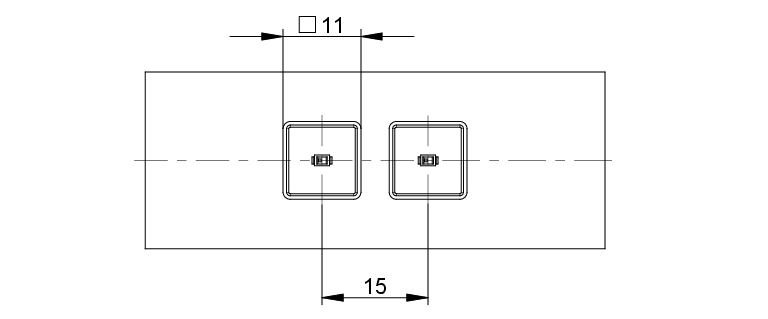

Dimensioned drawing

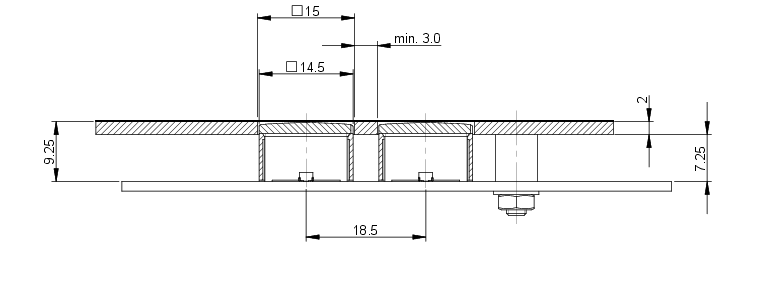

System drawing
Description
The wide selection of standard plungers in different shapes and colors guarantees a versatile range of applications for the MICON 5 tactile switch.
