MICON 5, round plunger 8 mm, GH 6.5 mm

Article number: 5.46.001.125/0200

Technical data

General

Color white
Collar shape round
illuminated No
Packaging unit 500 pcs.
net weight 0.1 g
Minimum order quantity (MOQ) 1,000 pcs.
RoHS compliant Yes
REACH compliant Yes
Component material Plastic

Mounting dimensions

Outside dimension, length 3.95 mm
Outside dimension, width 8 mm
Outside dimension, height 8 mm
Plunger length L 3.95 mm
Support height A 2.55 (SMT) / 2.5 (THT) mm
Total height GH 6.5 mm

Drawings

Dimensioned drawing

System drawing

Description

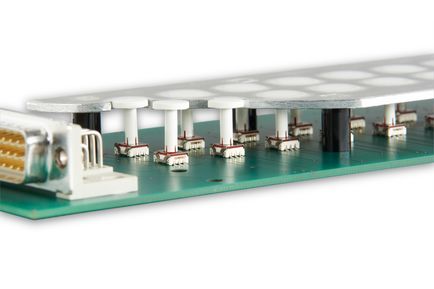

The wide selection of standard plungers in different shapes and colors guarantees a versatile range of applications for the MICON 5 tactile switch.

3D viewer

Downloads

CAD_3D_MIC5-546001125

CP65 Document

download

Declaration of conformity

download

POP Document

download

RoHS

download

SVHC Document

download

TSCA Document

download
