MICON 5, spot illumination plunger 18 mm, mechanical stop limit, GH 9.55 mm, corner illumination
Article number: 5.05.512.025/2200
Technical data

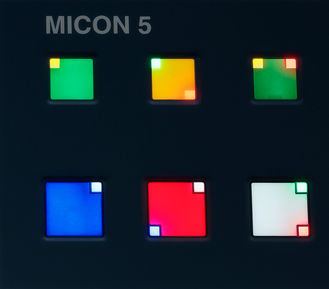

| illuminated | Yes |
| Luminous elements | corner illumination |
| Packaging unit | 100 pcs. |
| net weight | 1.3 g |
| MOQ order | 100 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 8.7 mm |
| Outside dimension, width | 18 mm |
| Outside dimension, height | 18 mm |
| Plunger length L | 6.2 mm |
| Support height A | 3.35 mm |
| Total height GH | 9.55 mm |
Drawings
Dimensioned drawing
System drawing

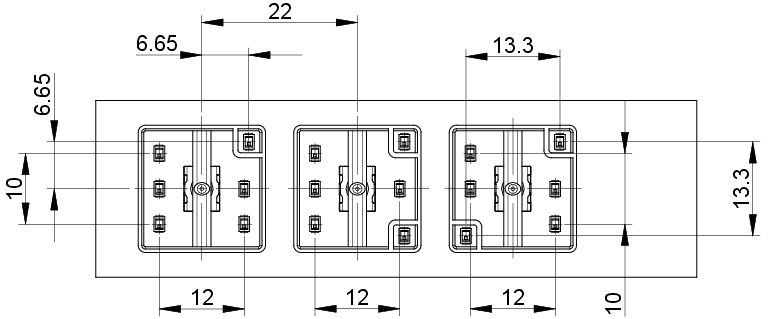

PCB drawing
Description
The wide selection of standard plungers in different shapes and colors guarantees a versatile range of applications for the MICON 5 tactile switch.
Main areas of application
- Measurement-control-regulation
- Mechanical and system engineering
- Automotive
- Signalling systems
- Vehicle construction
- Handheld terminals
