MICON 5, square plunger 11 mm, mechanical stop limit, green, GH 12.5 mm
Article number: 5.05.512.002/2500
Technical data
| Bezel color | green |
| illuminated | Yes |
| Packaging unit | 100 pcs. |
| net weight | 0.7 g |
| MOQ order | 100 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 11.65 mm |
| Outside dimension, width | 11 mm |
| Outside dimension, height | 11 mm |
| Plunger length L | 9.15 mm |
| Support height A | 3.35 mm |
| Total height GH | 12.5 mm |
Drawings
Dimensioned drawing
System drawing
PCB drawing
Description

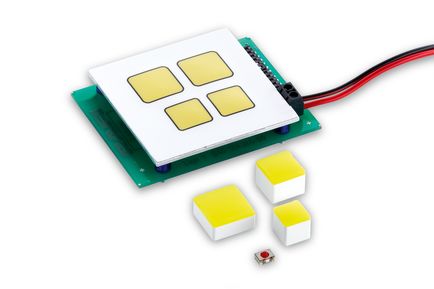

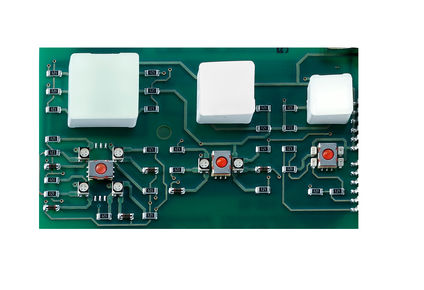

The wide selection of standard plungers in different shapes and colors guarantees a versatile range of applications for the MICON 5 tactile switch.
Main areas of application
- Measurement-control-regulation
- Mechanical and system engineering
- Automotive
- Signalling systems
- Vehicle construction
- Handheld terminals
