RACON, round plunger 19 mm, L 2.1 mm
Article number: 5.46.169.064/0209
Technical data
| Color | white |
| Collar shape | round |
| illuminated | No |
| Packaging unit | 500 pcs. |
| net weight | 0.3 g |
| MOQ order | 1,000 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Component material | Plastic |
| Outside dimension, length | 3.6 mm |
| Outside dimension, width | 19 mm |
| Outside dimension, height | 19 mm |
| Plunger length L | 2.1 mm |
Drawings

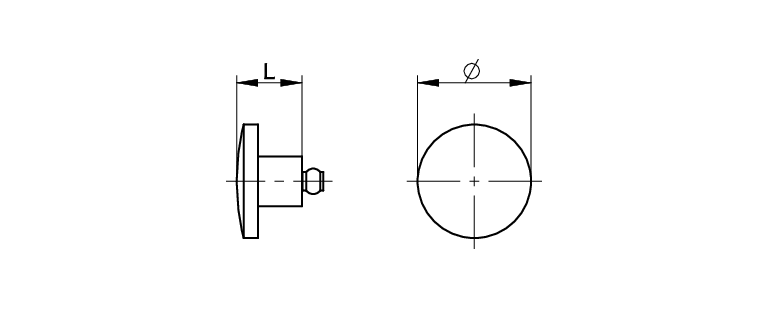

Dimensioned drawing
System drawing
Description
The wide selection of standard plungers in different shapes and colors guarantees a versatile range of applications for the RACON tactile switch.
Main areas of application
- Measurement-control-regulation
- Mechanical and system engineering
- Automotive
- Signalling systems
- Vehicle construction
- Handheld terminals
3D viewer
Downloads
CAD_3D_RAC8-RAC12-546169064
CP65 Document

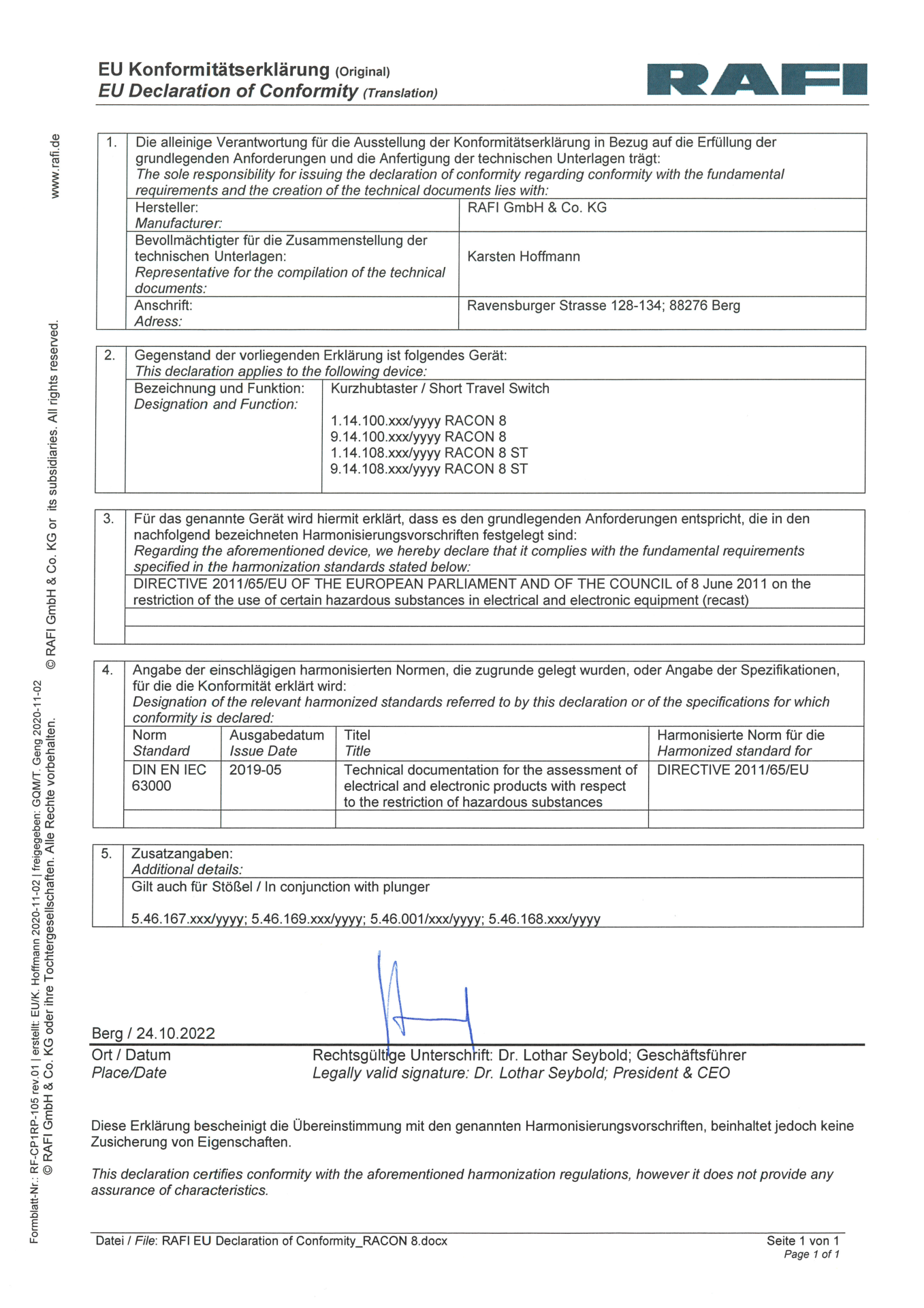

Declaration of conformity

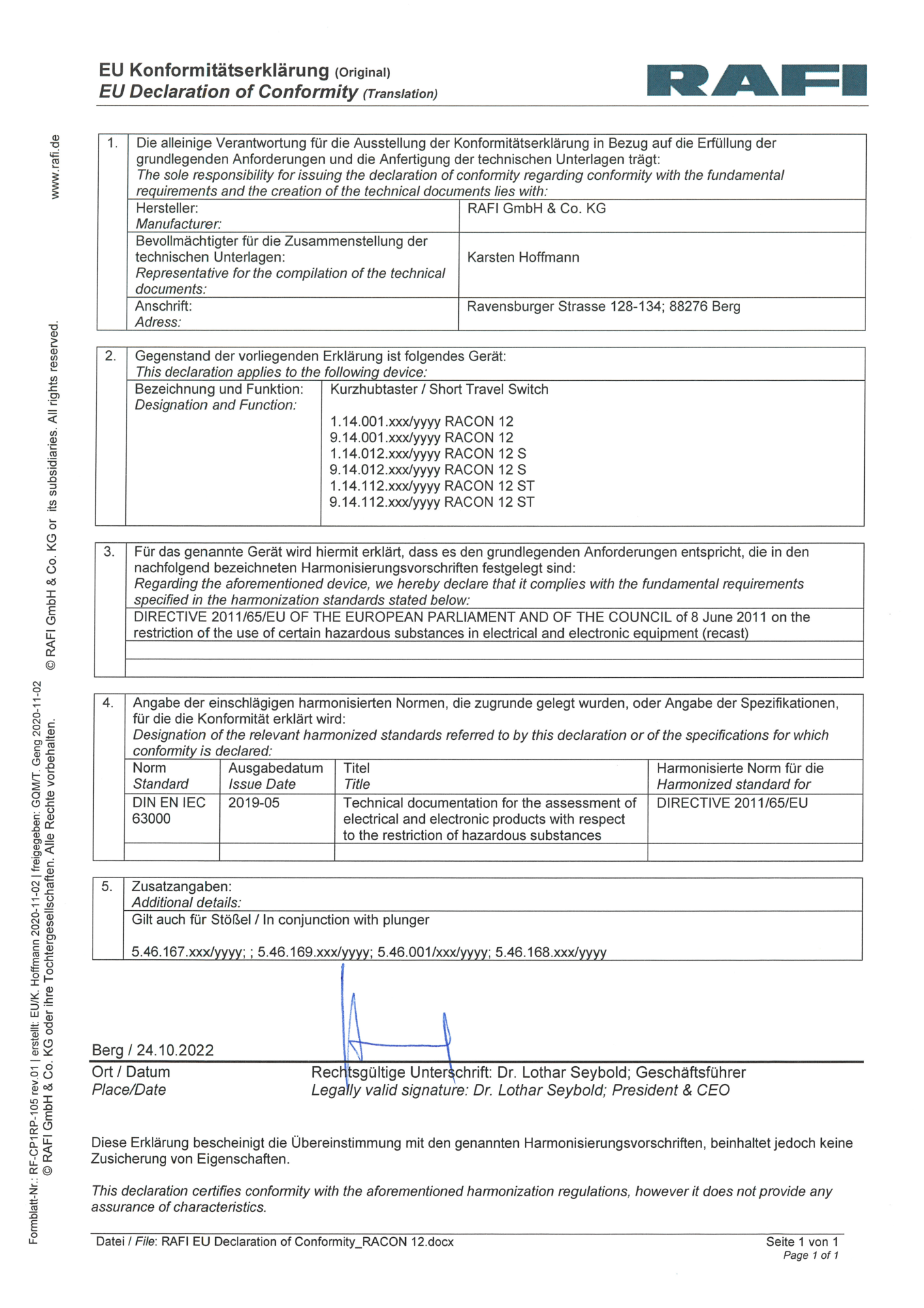

Declaration of conformity
