E-BOX XL IO-LINK, 4 installation points

Article number: 1.24.403.001/0000

General
Actuator position 1	FLEXLAB illuminated pushbutton
Actuator position 2	FLEXLAB illuminated pushbutton
Actuator position 3	FLEXLAB illuminated pushbutton
Actuator position 4	Emergency stop
Installation points	4 pcs.
Color	light gray
Operating temperature, min.	-25 °C
Operating temperature, max.	70 °C
Storage temperature, min.	-40 °C
Storage temperature, max.	80 °C
illuminated	Yes
Packaging	Box
Packaging unit	1 pcs.
Degree of protection, front side, according to DIN EN 60529	IP65
Degree of protection, rear side, according to DIN EN 60529	IP65
Protection class	II
MOQ order	1 pcs.
IO-Link version	Interface and System Specification 1.1.3
communication mode IO-Link	COM2 / 38,4 kBaud
cycle time	5 ms
Firmware Update	Yes over IO-Link Master
RoHS compliant	Yes
REACH compliant	Yes

Mounting dimensions
Outside dimension, length	260 mm
Outside dimension, width	40 mm
Mechanical characteristics
Fixing	Screw

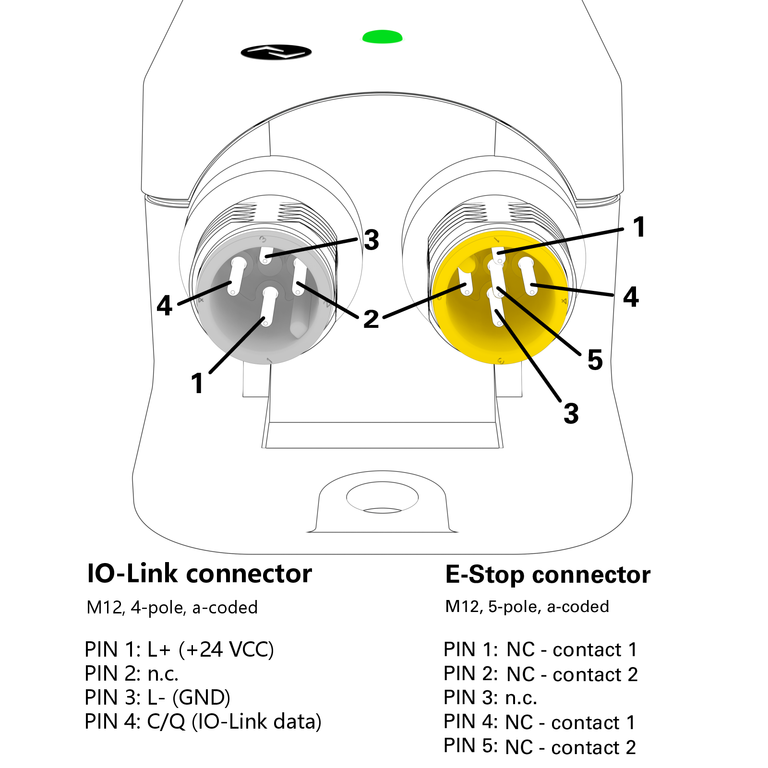

Terminal on the rear	M12 4-pin A-coded
Electrical characteristics
Voltage type	DC
Rated operating voltage	24 V
