E-BOX XL IO-LINK, 4 installation points, with IO

Article number: 1.24.410.001/0000

Coming soon

Technical data

General
Feature	with IO
Actuator position 1	FLEXLAB illuminated pushbutton
Actuator position 2	FLEXLAB illuminated pushbutton
Actuator position 3	FLEXLAB illuminated pushbutton
Actuator position 4	FLEXLAB illuminated pushbutton
Installation points	4 pcs.
Color	light gray
Operating temperature, min.	-30 °C
Operating temperature, max.	70 °C
Storage temperature, min.	-40 °C
Storage temperature, max.	80 °C
illuminated	Yes
Packaging	Box
Packaging unit	1 pcs.
Degree of protection, front side, according to DIN EN 60529	IP65
Degree of protection, rear side, according to DIN EN 60529	IP65
Protection class	II
Minimum order quantity (MOQ)	1 pcs.

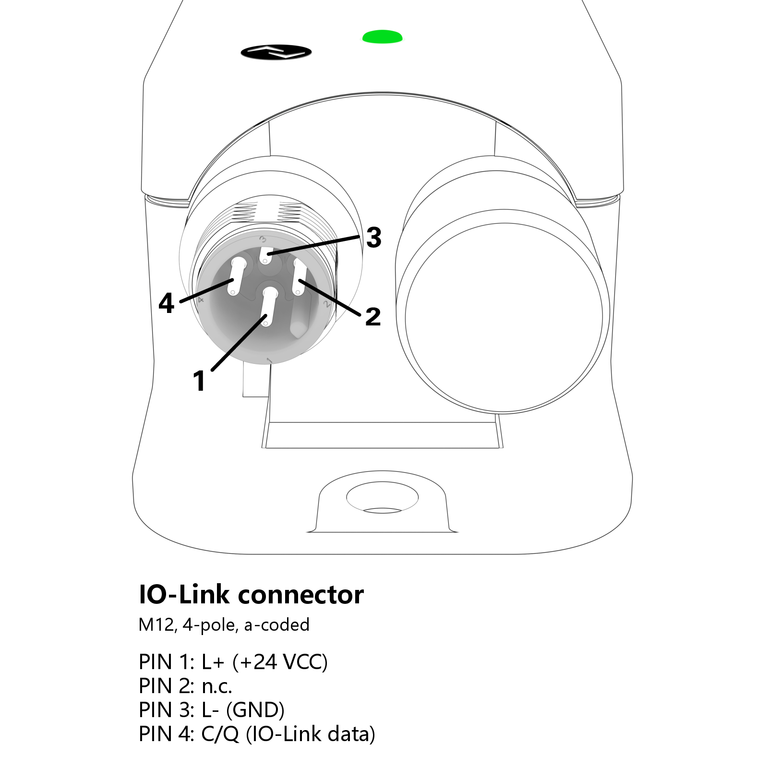

IO-Link version	Interface and System Specification 1.1.3
communication mode IO-Link	COM2 / 38,4 kBaud
cycle time	5 ms
Firmware Update	Yes over IO-Link Master
RoHS compliant	Yes
REACH compliant	Yes
Mounting dimensions
Outside dimension, length	260 mm
Outside dimension, width	40 mm
Mechanical characteristics
Fixing	Screw

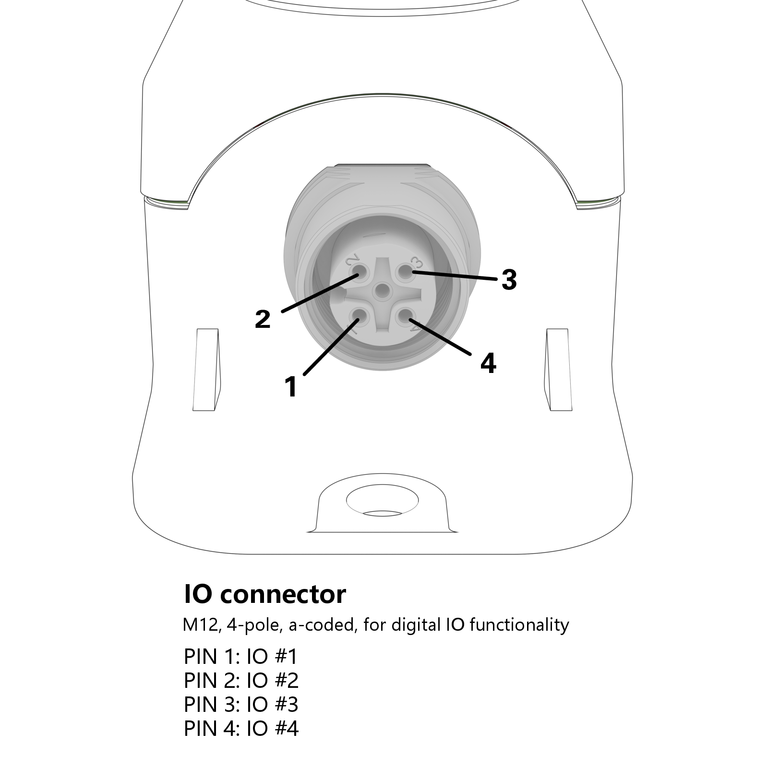

Front side terminal	IO M12 4-pin A-coded
Terminal on the rear	M12 4-pin A-coded

Electrical characteristics
Voltage type	DC
Rated operating voltage	24 V
Operating current, max.	970 mA

Drawings

Dimensioned drawing

System drawing

Connection drawing

Description

IO-LINK products make it easy to get started and can be quickly integrated into existing environments thanks to the use of standardized M12 connectors. Easily connected and individually parameterized, the E-BOX offers a housing concept with up to 6 installation points.

Mounting

Use a flat mounting surface for installation.
Fix the device to the mounting surface with two mounting screws with a diameter of max. 5.3 mm and a head diameter of max. 9.5 mm.

Parameterization

Flexible color selection: 5 standard colors plus 3 freely selectable RGB colors
Night mode with different brightness levels and various flashing modes
Can be diagnosed via the control unit: temperature and monitoring of switching cycles
Buzzer with various sound modes
