RAFIX 22 QR, illuminated pushbutton, protruding front ring, round collar, momentary contact function, frontring black, bezel red

Article number: 1.30.240.401/1301

Technical data

General
Bezel color	red
Property of bezel / mushroom	transparent
Front ring color	black
Collar shape	round
Operating temperature, min.	-25 °C
Operating temperature, max.	70 °C
Storage temperature, min.	-40 °C
Storage temperature, max.	80 °C
illuminated	Yes
Packaging	Box
Packaging unit	2 pcs.
Operating life	1,000,000 cycles
B10	1,300,000 cycles
Degree of protection, front side, according to DIN EN 60529	IP65
Environment resistance	IEC 60068-2-14 IEC 60068-2-30 IEC 60068-2-33 IEC 60068-2-78
MOQ order	50 pcs.

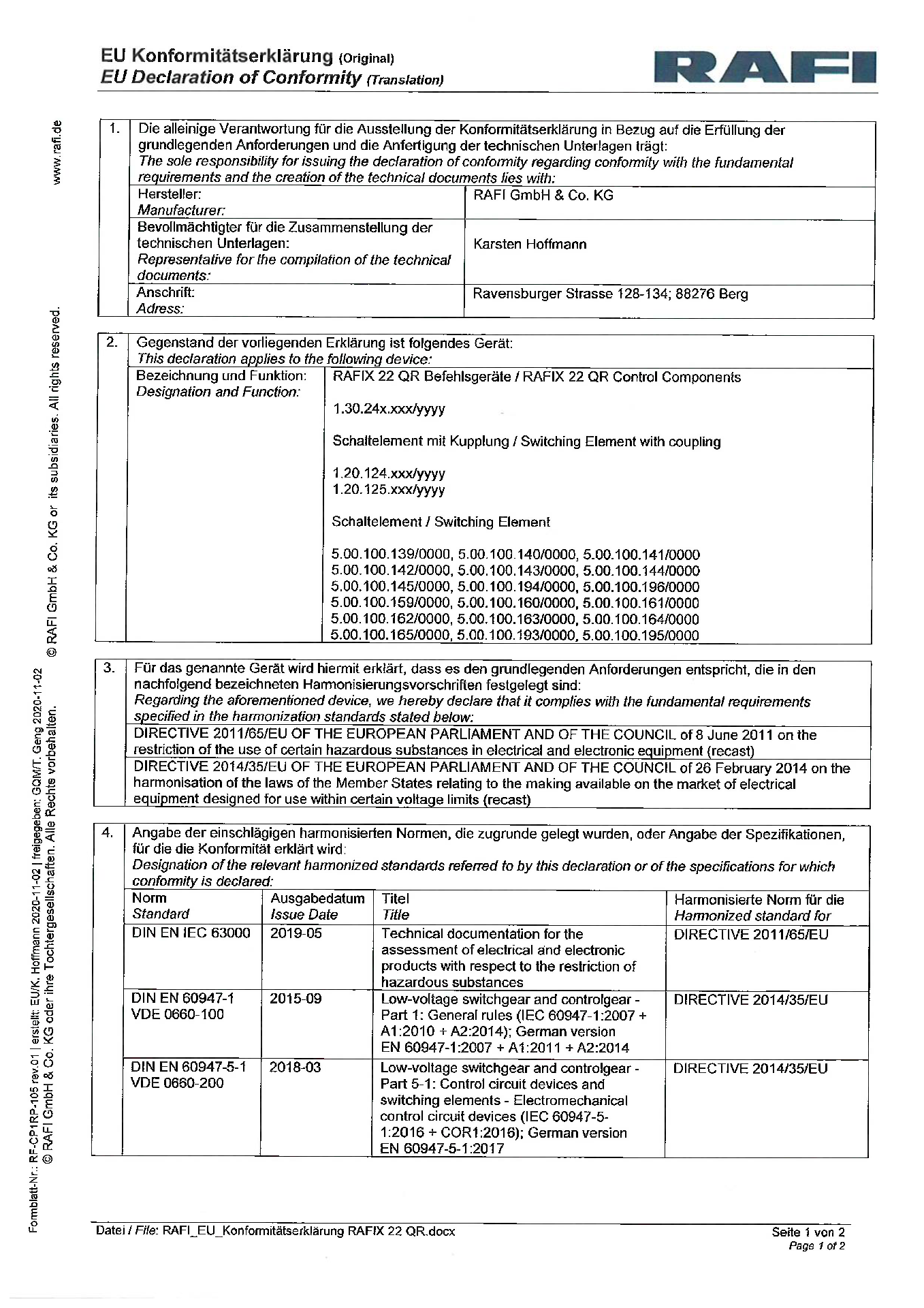

RoHS compliant	Yes
REACH compliant	Yes

Mounting dimensions
Outside dimension, length	29.8 mm
Outside dimension, width	29.8 mm
Outside dimension, height	35.5 mm
Mounting hole	22.3 mm
Mounting depth	56.4 mm
Installation height	12.6 mm
Grid, min.	50 x 30 mm
Collar dimension	ø 29,8 mm
Mechanical characteristics
Actuation function	momentary contact function
Operating force, max.	100 N
Operating travel, max.	4 mm
Fixing	Threaded ring
Threaded ring torque, max.	1.2 Nm

Drawings

System drawing

front panel drawing

Description

RAFIX control units are modular units consisting of several parts. In the RAFIX 22 QR family, they always consist of an actuating element, coupling, and switching element, or of a light attachment, coupling, and lamp socket. For assembly, the switching elements and lamp holders are first snapped into the coupling. Then this unit is snapped onto the actuating element or the signal lamp. To release, a bayonet lever must be actuated.

Actuating elements (such as pushbuttons or emergency stop actuators) have the specified tactility and function only when assembled with the appropriate switching elements. For illuminated actuators and illuminated attachments, please use a lamp socket / LED element as the middle element in the coupling.

For RAFIX 22 QR actuating elements, you can choose between two collar shapes: round and square. The mounting diameter is 22.3 mm according to the standard. The anti-rotation lug can be easily removed with a screwdriver if necessary.

Additional information according to UL certificate:

These devices should be mounted in an overall enclosure with sufficient stability and with the specified clearances.

Main areas of application

Measurement-control-regulation
Electrical engineering
Mechanical and system engineering
Vehicle construction

Special features

Transparent panels, illuminable
Lettering with inserts possible
Firmly moulded collar seal, cannot twist or be lost during installation.
1-person mounting: the element is clamped in the mounting hole by the seal and can then bescrewed in from behind.
Robust - also suitable for operation with gloves on
Degree of protection: IP 65 at the front
Mounting diameter 22.3 mm
Separate switching elements required
Close mounting of actuators possible (min. 30 x 50 mm), as wiring is axial from behind
Switching elements with silver contacts (max. 400 V) or gold contacts (max. 35 V / 100 mA)
Connection types switching elements: cage clamp, screw connection or plug-in connection
