LUMOTAST 22 active/inactive emergency stop button, 2 NC, Silver, Flat quick-connect terminal 2.8 x 0.8 tin-plated, reset by rotating, Mushroom head transparent

Article number: 1.15.105.112/0000

Technical data

General

Color of mushroom transparent
Property of bezel / mushroom transparent
Collar color yellow
Luminous element color red
Collar shape round
Operating temperature, min. -25 °C
Operating temperature, max. 70 °C
Storage temperature, min. -40 °C
Storage temperature, max. 80 °C
illuminated Yes
Luminous elements LED
Soldering time for manual soldering, max. 5 sec
Soldering temperature for manual soldering 350 °C
Soldering Manual soldering
Packaging Box
Packaging unit 10 pcs.
net weight 17.7 g
Operating life 50,000 cycles
B10 65,000 cycles
B10d 130,000 cycles
Degree of protection, front side, according to DIN EN 60529 IP65
MOQ order 10 pcs.
RoHS compliant Yes
REACH compliant Yes

Mounting dimensions

Outside dimension, width 29.6 mm
Mounting hole 22.3 mm
Mounting depth 17.6 mm
Installation height 25.9 mm

Mechanical characteristics

Contact function 2 NC
Contact material Silver
Resetting by rotating
Fixing Threaded ring
Solderability Yes
Threaded ring torque, max. 1.2 Nm
Terminal on the rear Flat quick-connect terminal 2.8 x 0.8 tin-plated

Electrical characteristics

Rated insulation voltage 250 V
Operating voltage of the luminous element, min. 12 V
Operating voltage of the luminous element, max. 30 V
Rated voltage, min. 0.02 V
Rated voltage, max. acc. to UL 60947 24 V DC / 3 A
Rated operating current I, AC15 B300 120 V / 3 A
240 V / 1,5 A
Rated operating current I, DC13 Q300 60 V / 1 A
125 V / 0,55 A
250 V / 0,275 A
24 V / 2 A
Operating current of the luminous element, max. 4 mA
Rated current, min. 0.001 A
Rated power, min. 0.5 W

Drawings

Dimensioned drawing

Mounting hole drawing

Schematic diagram

Description

The emergency stop pushbuttons comply with IEC 60 204, IEC 60 073, IEC 60 947 and VDE 0113 Part 1. They are protected against unauthorized actuation by a positively guided mechanical movement sequence in accordance with DIN EN ISO 13850. To protect against accidental actuation, a pressure point must be overcome and the pushbutton engages in the pressed position. Due to the shape of the actuating element, the emergency stop pushbutton is protected against blocking. This means that an initiated emergency stop procedure cannot be interrupted by jamming objects. See appendix for original operating instructions.

The compact LUMOTAST 22 emergency stop with quick-connect terminals is ideal wherever an emergency stop or emergency off is required and space is tight in front of or behind the front panel. This emergency stop is also available with a PCB terminal, see RAFIX 22 FS+ control component range.

Main areas of application

  • Measurement-control-regulation
  • Mechanical and system engineering
  • Vehicle construction

Special features

  • Mounting hole diameter 22.3 mm
  • Night design: illumination of the arrows possible
  • Low mounting depth of 17.6 mm
  • Water jet protection class IP 65 on front
  • Switching elements with silver contacts
  • Contact configurations: 2 NC, 2 NC + 1 NO
  • Quick-connect terminal
  • Complies with DIN EN ISO 13850

3D viewer

Downloads

CAD_3D_Lumotast22-1151050x1

download

CCC certificate

download

Chemical resistance

download

Declaration of conformity

download

RoHS

download

SVHC Document

download

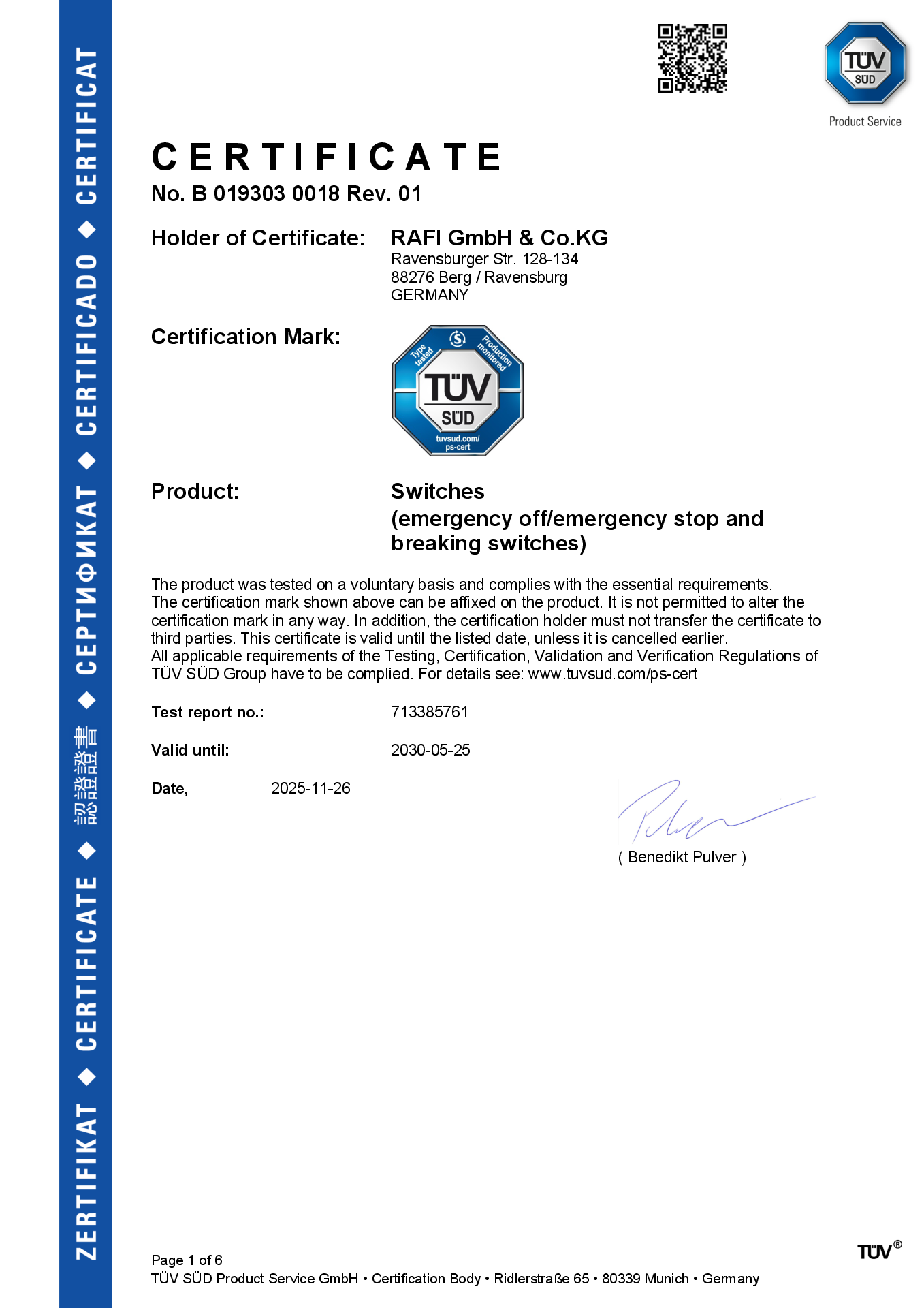

TÜV certificate

download

UL certificate

download

Optional accessories

Plug-in distributors

Female quick-connect terminal

Emergency stop, adhesive label, round 22.3, outside diameter 40 mm

Emergency stop, adhesive label, round 22.3, outside diameter 60 mm

Emergency stop, hard PVC label, round 22.3, outside diameter 60 mm
