Illuminated pushbutton 9.1 mm, with included LED, momentary contact function, 1 NC + 1 NO, bezel yellow
Article number: 1.15.106.503/1400
Technical data
| Bezel color | yellow |
| Property of bezel / mushroom | transparent |
| Collar shape | round |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 80 °C |
| illuminated | Yes |
| Luminous elements | LED |
| Soldering time for manual soldering, max. | 3 sec |
| Soldering temperature for manual soldering | 350 °C |
| Soldering | Manual soldering |
| Packaging | Box |
| Packaging unit | 10 pcs. |
| net weight | 2.2 g |
| Operating life | 200,000 cycles |
| B10 | 260,000 cycles |
| Degree of protection, front side, according to DIN EN 60529 | IP40 |
| MOQ order | 50 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 11 mm |
| Outside dimension, width | 11 mm |
| Outside dimension, height | 32 mm |
| Mounting hole | 9.1 mm |
| Mounting depth | 25 mm |
| Installation height | 7 mm |
| Actuation function | momentary contact function |
| Operating force, min. | 5 N |
| Operating travel, max. | 1.5 mm |
| Contact function | 1 NC + 1 NO |
| Contact system | Bridge contact |
| Contact material | Gold |
| Fixing | Threaded ring |
| Solderability | Yes |
| Terminal on the rear | Solder terminal |
| Operating voltage of the luminous element, max. | 2 V |
| Rated voltage, max. | 24 V |
| Operating current of the luminous element, max. | 10 mA |
| Rated current, max. |
|
Description
Mounting hole diameter 9.1 mm, max. 24 V / 500 mA, with integrated LED / filament lamp
Recommended values for LED series resistor
- 5 - 7 V = 270 Ohm , 0.25 W
- 12 - 14 V = 680 Ohm, 0.5 W
24 - 28 V = 1500 Ohm, 1 W
- LED forward current: max. 10 mA at T = 25° C
- LED forward voltage: 2 V at 10 mA
- LED reverse voltage: 5 V
- LED reverse current: 0.1 mA
- LED power dissipation: max. 120 mW at T = 50° C
Contact assignment: 1-2 = normally closed, 3-4 = normally open, X1-X2 = LED.
Observe correct polarity: positive to LED anode, the anode is marked with a colored dot.
Main areas of application
- Mechanical and system engineering
- Model construction
- Home technology
3D viewer
Downloads
CAD_3D_PB-115106xxx-02
CP65 Document

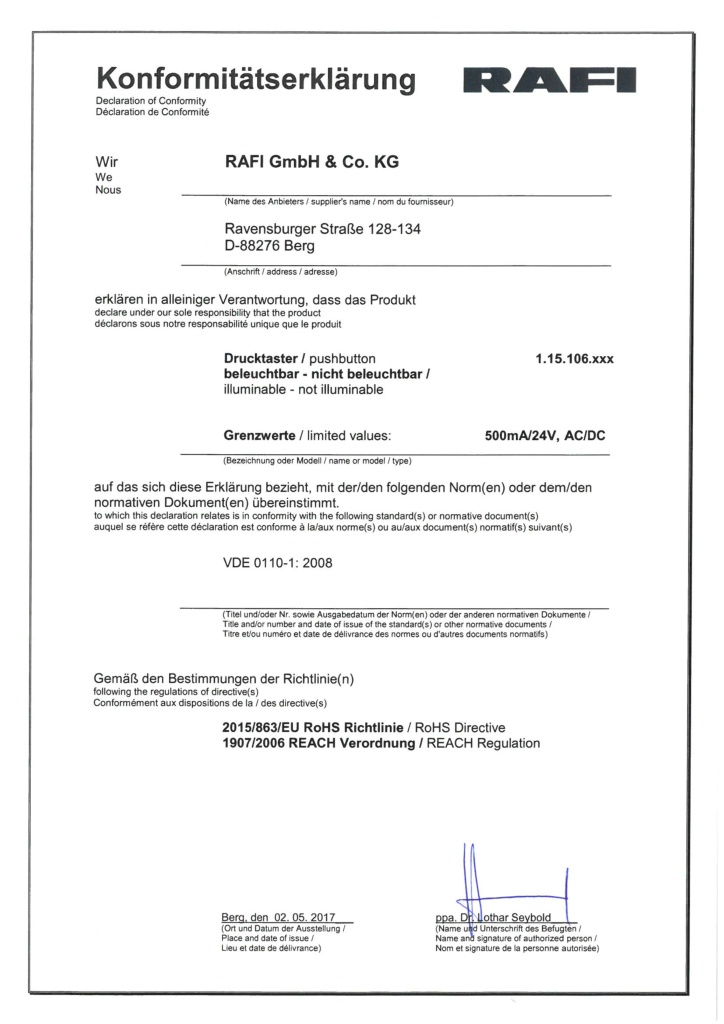

Declaration of conformity
