Pushbutton, 18.2 mm, screw terminal, momentary contact function, 2 NO, bezel black
Article number: 1.01.102.001/0104
Technical data
| Bezel color | black |
| Property of bezel / mushroom | opaque |
| Collar shape | round |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 90 °C |
| illuminated | No |
| Packaging | Box |
| Packaging unit | 100 pcs. |
| net weight | 16 g |
| Operating life | 50,000 cycles |
| B10 | 65,000 cycles |
| Degree of protection, front side, according to DIN EN 60529 |
IP40
IP65 IP65 with sealing cap |
| MOQ order | 100 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 22 mm |
| Outside dimension, width | 22 mm |
| Outside dimension, height | 44.5 mm |
| Mounting hole | 18.2 mm |
| Mounting depth | 34 mm |
| Installation height | 10.5 mm |
| Actuation function | momentary contact function |
| Operating force, min. | 9.5 N |
| Operating travel, max. | 5 mm |
| Contact function | 2 NO |
| Contact system | Bridge-sliding contact |
| Contact material | Silver |
| Fixing | Threaded ring |
| Terminal on the rear | Screw terminal |
| Rated voltage, max. | 250 V |
| Rated current, max. | 2 A |
Description
Pushbutton with mounting hole diameter 18.2 mm, non-illuminated, 250 V / 4 A
Main areas of application
- Mechanical and system engineering
- Model construction
- Home technology
3D viewer
Downloads
CAD_3D_PB-1011020x1

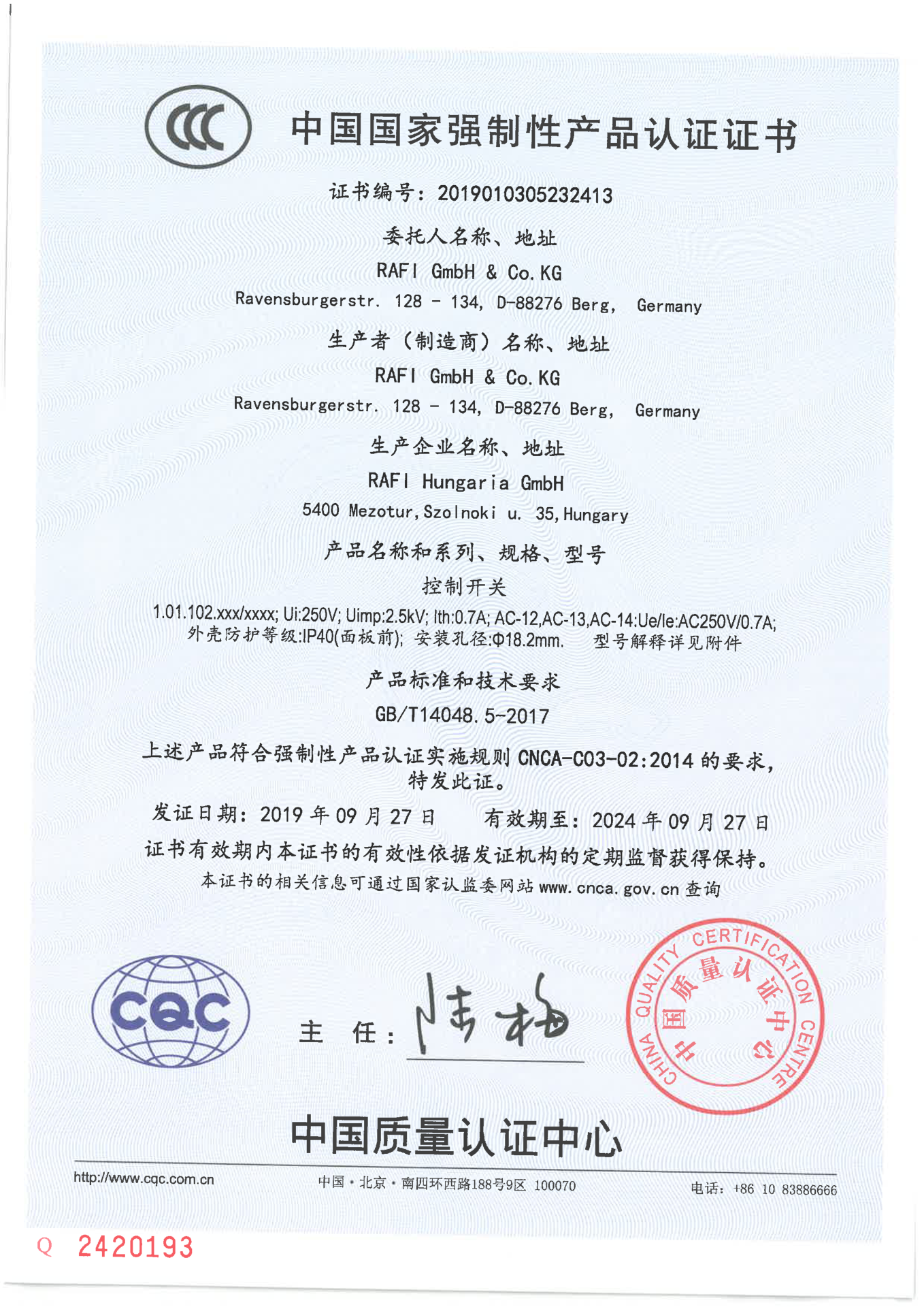

CCC certificate
CP65 Document

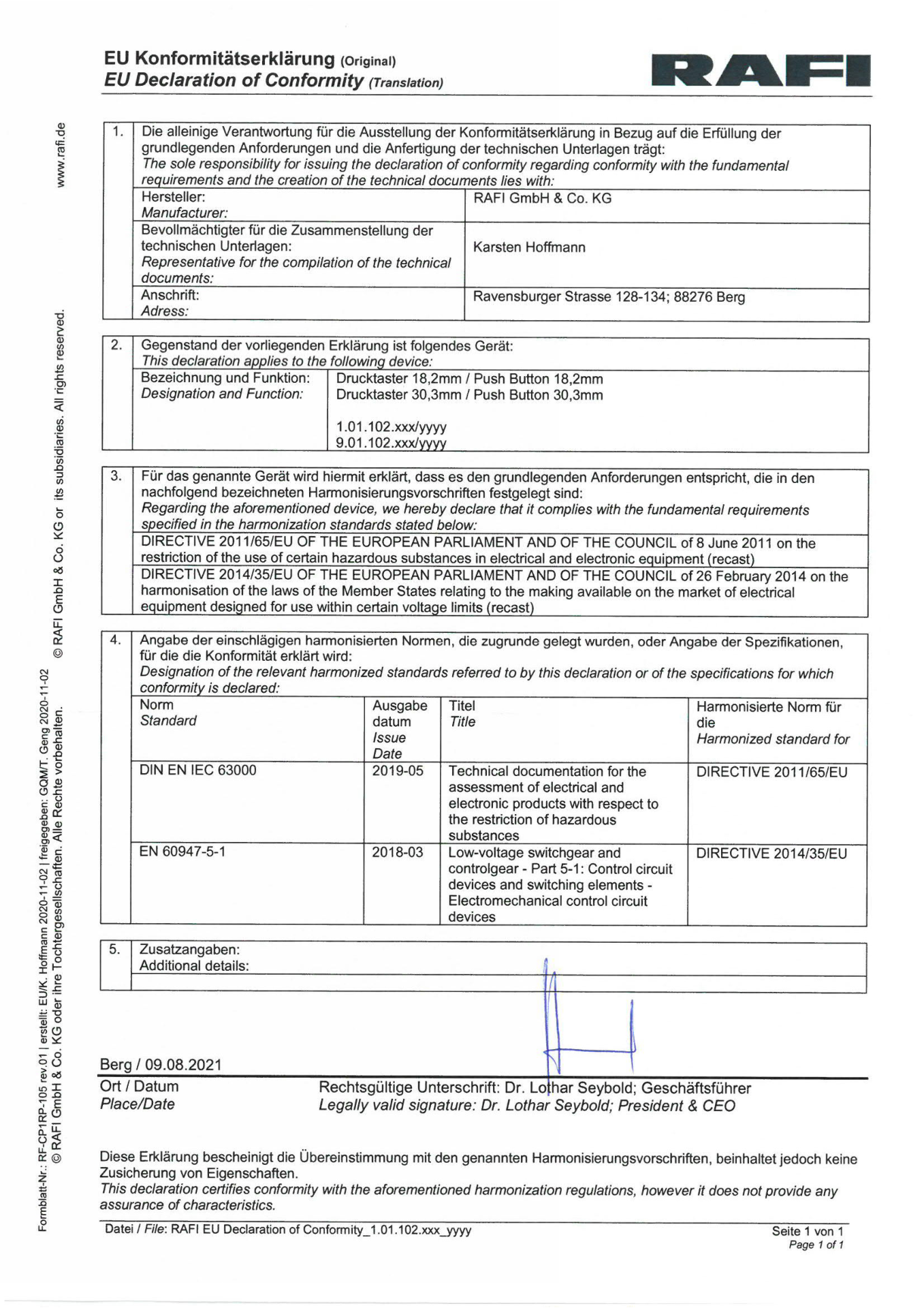

Declaration of conformity
POP Document
RoHS
SVHC Document
TSCA Document
Optional accessories
Pushbutton, sealing cap, black, L 18.2 mm
