Signal lamp with lamp socket, BA 9s, 16.2 mm, IP65, housing, 250 Volt, Flat quick-connect terminal 6.3 x 0.8 / 2 x 2.8 x 0.8 tin-plated
Article number: 1.63.004.100/0000
Technical data
| illuminated | Yes |
| Lamp socket | BA9s |
| Packaging unit | 10 pcs. |
| net weight | 6.9 g |
| Degree of protection, front side, according to DIN EN 60529 | IP65 |
| Minimum order quantity (MOQ) | 100 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 22 mm |
| Outside dimension, width | 22 mm |
| Outside dimension, height | 60.8 mm |
| Mounting hole | 16.2 mm |
| Mounting depth | 45.8 mm |
| Installation height | 15 mm |
| Collar dimension | 22 mm |
| Fixing | Threaded ring |
| Solderability | Yes |
| Terminal on the rear | Flat quick-connect terminal 6.3 x 0.8 / 2 x 2.8 x 0.8 tin-plated |
| Operating voltage of the luminous element, max. | 250 V |
Drawings

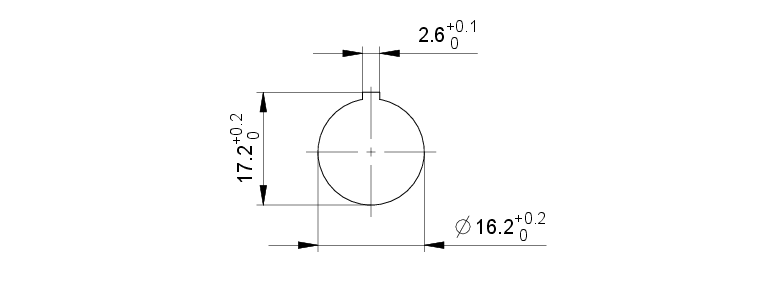

Mounting hole drawing
Description
Signal lamps for LEDs or filament/neon lamps with BA 9 s socket, mounting hole diameter 16.2 mm
3D viewer
Downloads
CAD_3D_SL-LED-163004020-03
CP65 Document

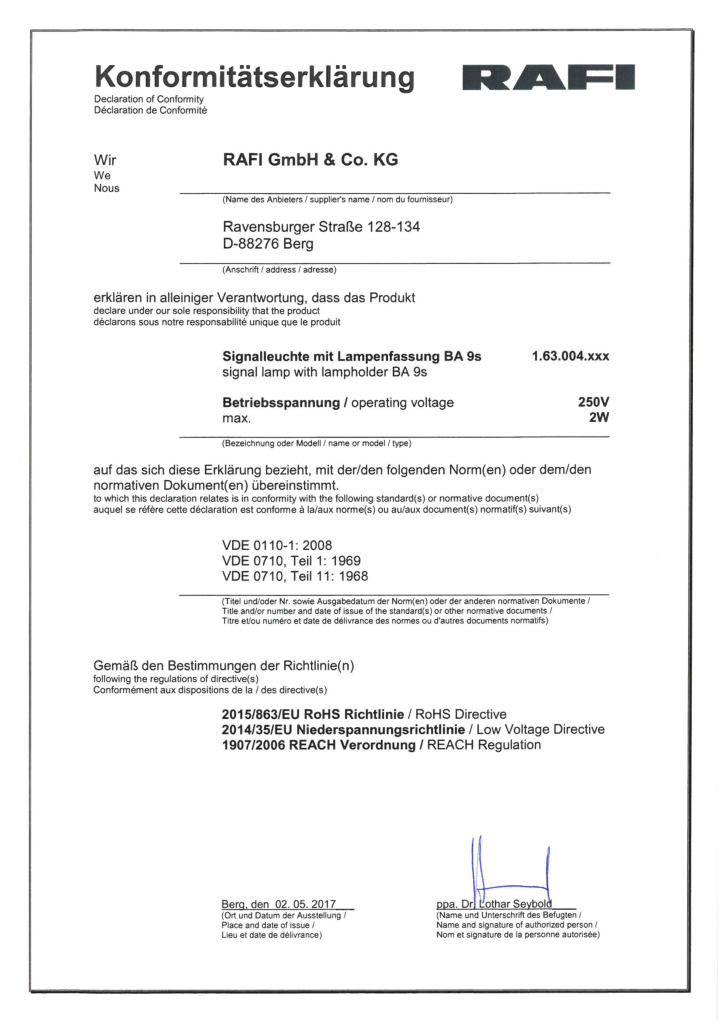

Declaration of conformity
POP Document
RoHS
SVHC Document
TSCA Document
Required accessories
Bezel, 16.2 mm, IP65
LED, socket BA 9s
Filament lamp, socket BA 9s
