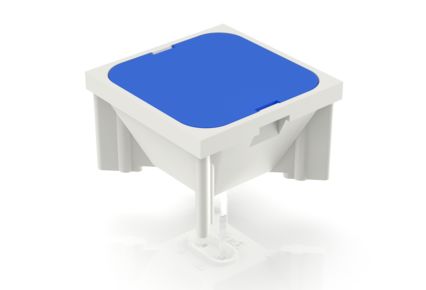

RF 19, indicator field, 1 x 1-module, lamp blue, bezel blue
Article number: 3.14.001.659/0000
Technical data
| Bezel color | blue |
| Luminous element color | blue |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 70 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 70 °C |
| illuminated | Yes |
| Luminous elements | Full illumination LED |
| Soldering time for manual soldering, max. | 5 sec |
| Soldering temperature for manual soldering | 350 °C |
| Soldering temperature for wave soldering | 260 °C |
| Soldering | Manual / wave |
| Solder heat resistance according to standard | DIN EN 60068-2-20 |
| Packaging | Tube |
| Packaging unit | 25 pcs. |
| Net weight | 2.1 g |
| Environment resistance |
IEC 60068-2-14
IEC 60068-2-30 IEC 60068-2-33 IEC 60068-2-78 |
| Minimum order quantity (MOQ) | 25 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Country of origin | HU |
| Outside dimension, length | 19 mm |
| Outside dimension, width | 19 mm |
| Outside dimension, height | 9.15 mm |
| Installation height | 9.15 mm |
| Grid, min. | 23 mm |
| Terminal on the rear | THT |
| Fixing | Soldering |
| Solderability | Yes |
| Switching travel | 0.5+0.3 mm |
| Operating voltage of the luminous element, min. | 2.7 V |
| Operating voltage of the luminous element, max. | 5 V |
| Operating current of the luminous element, max. | 20 mA |
| dropping resistor | no |
Drawings
Dimensioned drawing
Description
RF 19 indicator fields have a 19 mm grid spacing and are used under overlays in flat data entry keyboards as pure indicators. Different sizes are available, depending on the desired indicator shape.
3D viewer
Downloads
CAD_3D_RF19-314001659
CAD_3D_RF19-31400205x
CP65 document

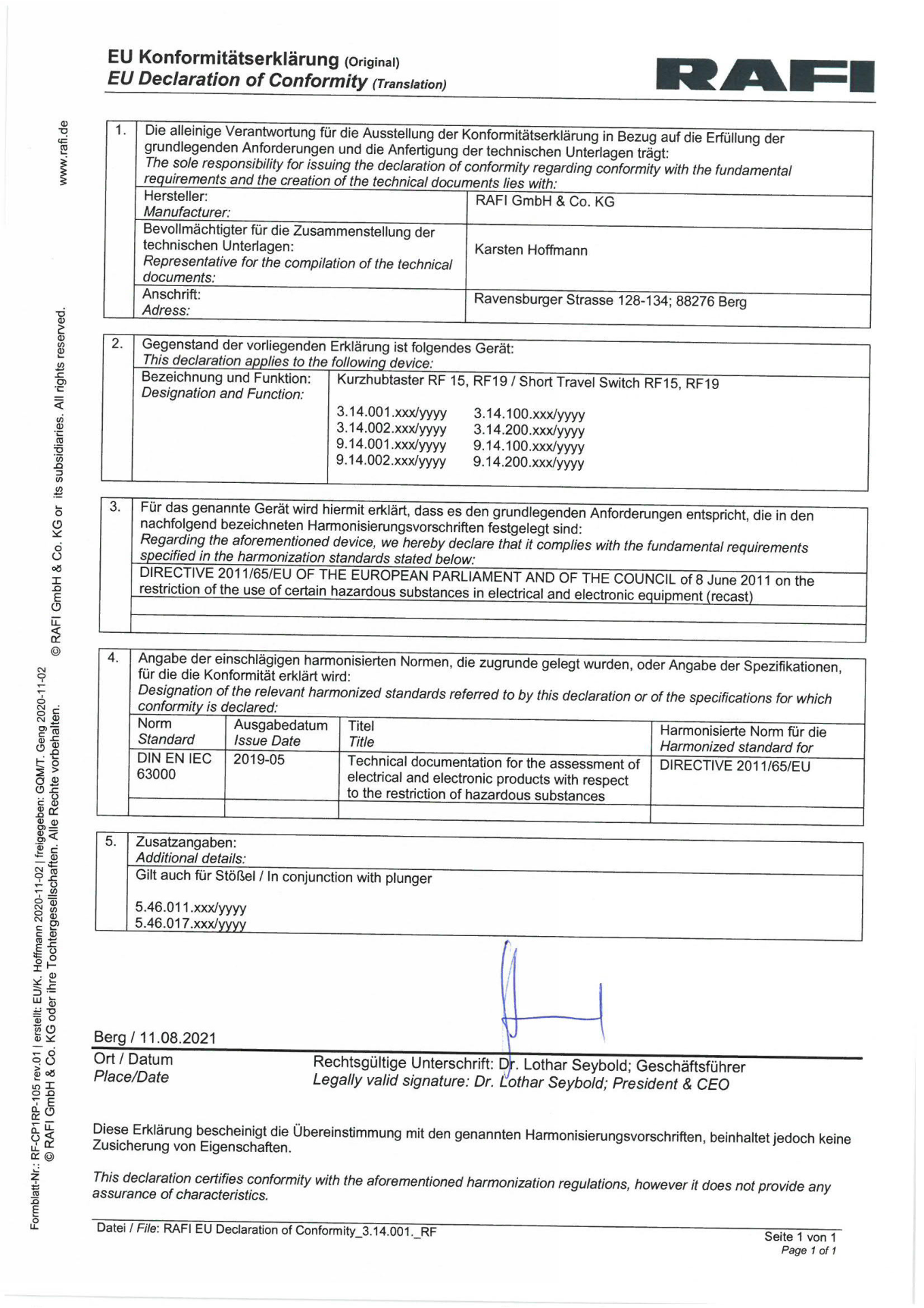

Declaration of conformity
