RAFIX 30 FS⁺, signal lamp, round collar, lamp red / green, bezel white, Flat quick-connect terminal 2.8 x 0.8

Article number: 1.74.510.111/2200

Discontinued

Technical data

General
Bezel color	white
Front ring color	stainless steel
Luminous element color	red / green
Collar shape	round
Operating temperature, min.	-25 °C
Operating temperature, max.	60 °C
Storage temperature, min.	-40 °C
Storage temperature, max.	80 °C
illuminated	Yes
Packaging	Box
Packaging unit	10 pcs.
Net weight	16.6 g
Minimum order quantity (MOQ)	10 pcs.
RoHS compliant	Yes
REACH compliant	Yes
Country of origin	HU
Mounting dimensions
Outside dimension, length	34.5 mm
Outside dimension, width	34.5 mm
Outside dimension, height	37.1 mm
Mounting hole	30.3 mm
Mounting depth	31.85 mm
Installation height	5.25 mm
Grid, min.	35 mm
Collar dimension	34.5 mm
Mechanical characteristics
Terminal on the rear	Flat quick-connect terminal 2.8 x 0.8
Fixing	Threaded ring
Solderability	No

Electrical characteristics
Operating voltage of the luminous element, min.	8 V
Operating voltage of the luminous element, max.	30 V
Voltage type	DC
Rated operating voltage	8-30 V
Power loss	0.39000 W
Specifications according to UL 60947
UL Enclosure Type Rating front side	type 1 type 4X indoor

Drawings

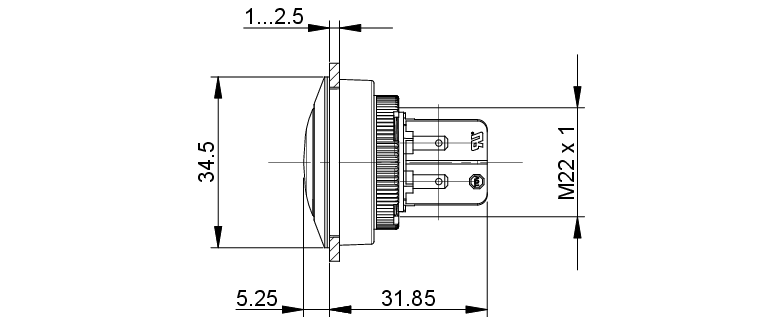

Dimensioned drawing

Mounting hole drawing

Connection drawing

Description

Separate 2.8 x 0.8 mm plug-in connections and integrated reverse polarity protection allow three signal states to be displayed in one lamp: white unlit, red lit and green lit.

Use according to UL:

RAFIX control devices are defined at RAFI as modular elements, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit.

Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements.
