LED, FS technology QC Clip, 24 Volt, yellow
Article number: 5.05.511.747/1400
Technical data
| Luminous element color | yellow |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| illuminated | Yes |
| Luminous elements | LED |
| Packaging unit | 10 pcs. |
| net weight | 1 g |
| MOQ order | 10 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 18.2 mm |
| Outside dimension, width | 7.98 mm |
| Outside dimension, height | 17.23 mm |
| Terminal on the rear | Flat quick-connect terminal 2.8 x 0.8 |
| Operating voltage of the luminous element, min. | 19.2 V |
| Operating voltage of the luminous element, max. | 28.8 V |
| Voltage type | DC |
| Rated operating voltage | 19,2-28,8 V |
| Power loss | 0.05760 W |
Description
- Clip with SMT LED
- Illumination of illuminated pushbuttons, illuminated selector switches, illuminated emergency stop and illuminated actuators
- Mounting: snap into switching elements QC and clip carrier for illuminated actuator
- For better illumination use switching elements with light guide
- For clear colors we recommend to choose the LED color in the color of the bezel
3D viewer
Downloads
CAD_3D_RAFIX-22-R30-505511747

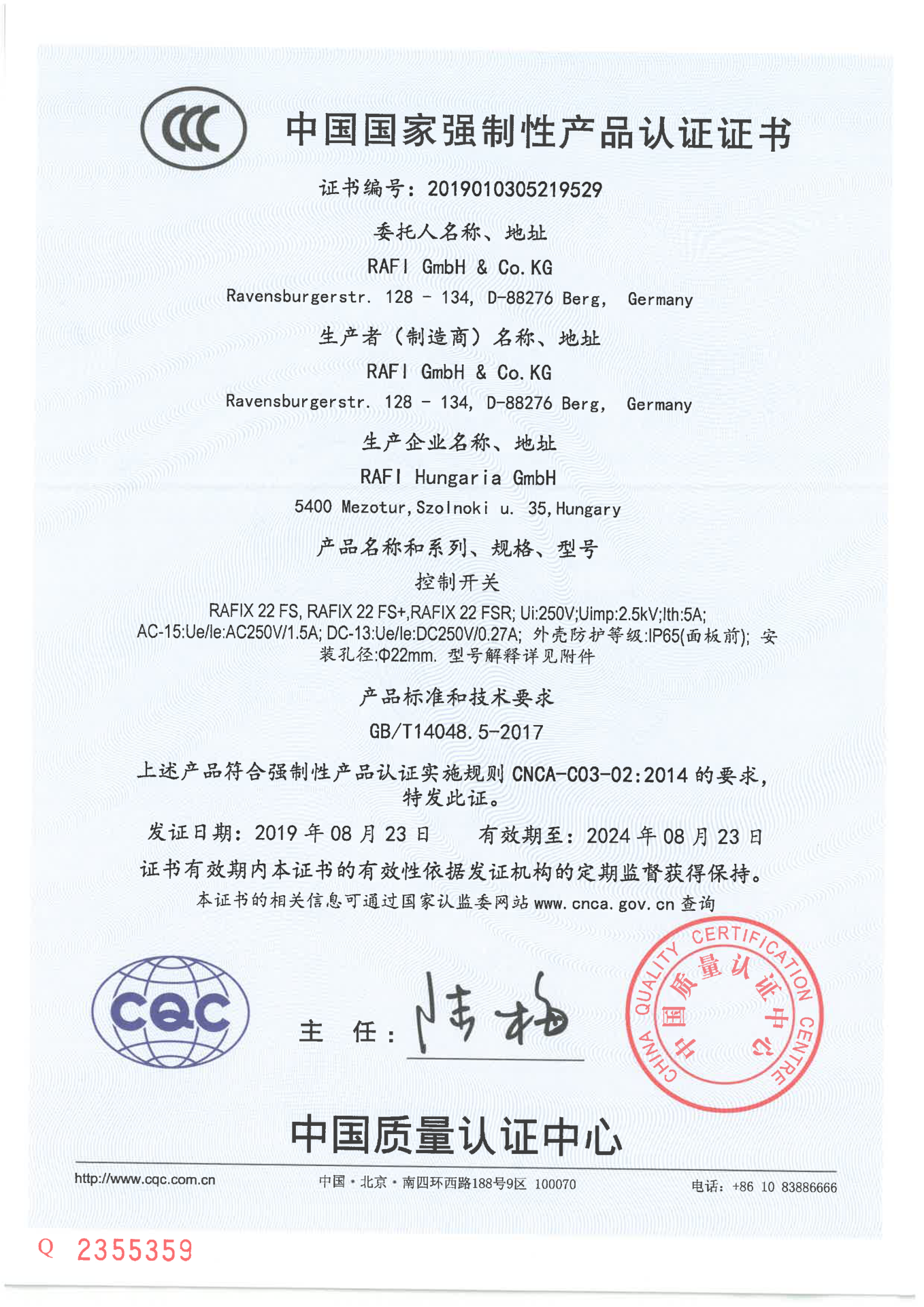

CCC certificate
CP65 Document

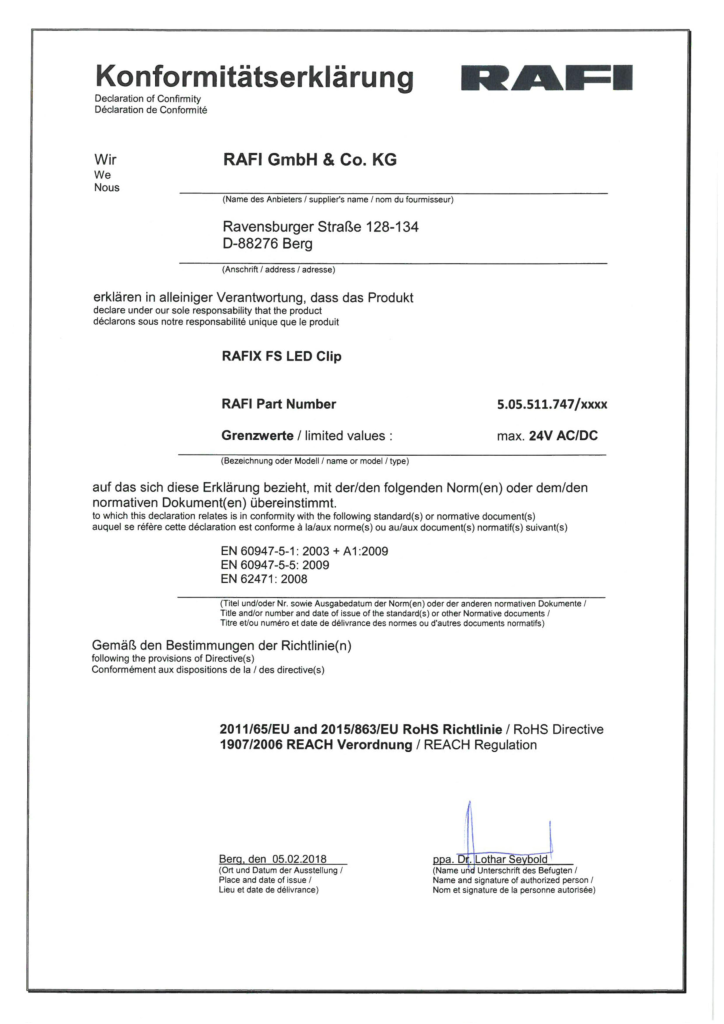

Declaration of conformity
POP Document
RoHS
SVHC Document
TSCA Document
TÜV certificate
UL certificate
Optional accessories
Components, RAFIX FS technology, clip holder, 18.1 mm x 18.1 mm, with light guide
