  • RAFIX 22 QR coupling
  • RAFIX 22 QR coupling, 1 - 3 - 2

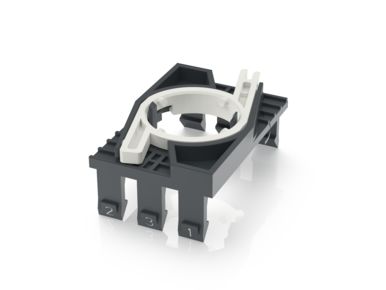

RAFIX 22 QR coupling, 1 - 3 - 2

Article number: 5.05.510.935/0000

Technical data

General

Legending 1 - 3 - 2
Packaging unit 20 pcs.
net weight 6.8 g
MOQ order 20 pcs.
RoHS compliant Yes
REACH compliant Yes

Mounting dimensions

Outside dimension, length 49.6 mm
Outside dimension, width 29.9 mm
Outside dimension, height 18 mm

Mechanical characteristics

Fixing Latching

Drawings

Dimensioned drawing

Description

3D viewer

Downloads

CAD_3D_R22-QR-50551093x

download

RoHS

download

SVHC Document

download

UL certificate

download
