RAFIX 22 FSR, signal indicator, round collar, bezel white
Article number: 1.74.509.011/2200
Technical data
| Bezel color | white |
| Property of bezel / mushroom | translucent |
| Collar shape | round |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| illuminated | Yes |
| Packaging | Box |
| Packaging unit | 10 pcs. |
| net weight | 10.5 g |
| Degree of protection, front side, according to DIN EN 60529 |
IP65
IP67 IP69 |
| UL Enclosure Type Rating front side |
type 1
type 4X indoor |
| Environment resistance |
IEC 60068-2-14
IEC 60068-2-30 IEC 60068-2-33 IEC 60068-2-78 |
| Salt-spray resistance according to standard | IEC 60068-2-11 |
| Impact resistance IK | 06 |
| MOQ order | 10 pcs. |
| RoHS compliant | Yes |
| REACH compliant | Yes |
| Outside dimension, length | 31.3 mm |
| Outside dimension, width | 31.3 mm |
| Outside dimension, height | 20.8 mm |
| Mounting hole | 22.3 mm |
| Mounting depth | 9.2 mm |
| Installation height | 12.2 mm |
| Grid, min. | 32 x 32 mm |
| Collar dimension | ø 31,3 mm |
| Fixing | Threaded ring |
| Threaded ring torque, max. | 1.2 Nm |
Drawings

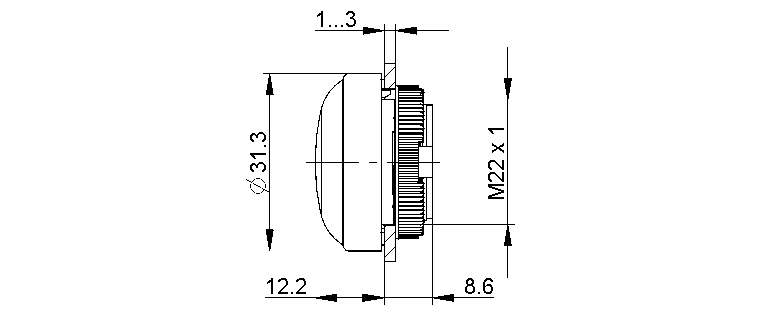

Dimensioned drawing
System drawing
System drawing
Description
RAFIX control devices are defined at RAFI as modular elements, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit.
Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements.
The RAFIX 22 FSR signal indicators are designed for illumination with SMT or THT LEDs. They ensure full illumination that can also be seen from the side.
Main areas of application
- Measurement-control-regulation
- Mechanical and system engineering
- Agricultural and forestry machinery
- Construction machinery
Special features
- Lighting attachment
- Illumination with SMT LED
- Low installation depth 9.2 mm (PCB) or 27 mm (QC with LED clip)
- Connection types: printed circuit board connection (PCB) or plug-in connection (QC)
- Degree of protection: IP 65 / IP 67 / IP 69K front side
3D viewer
Downloads
Brochure
Brochure
CAD_3D_R22-FSR-174509011
Chemical resistance
CP65 Document

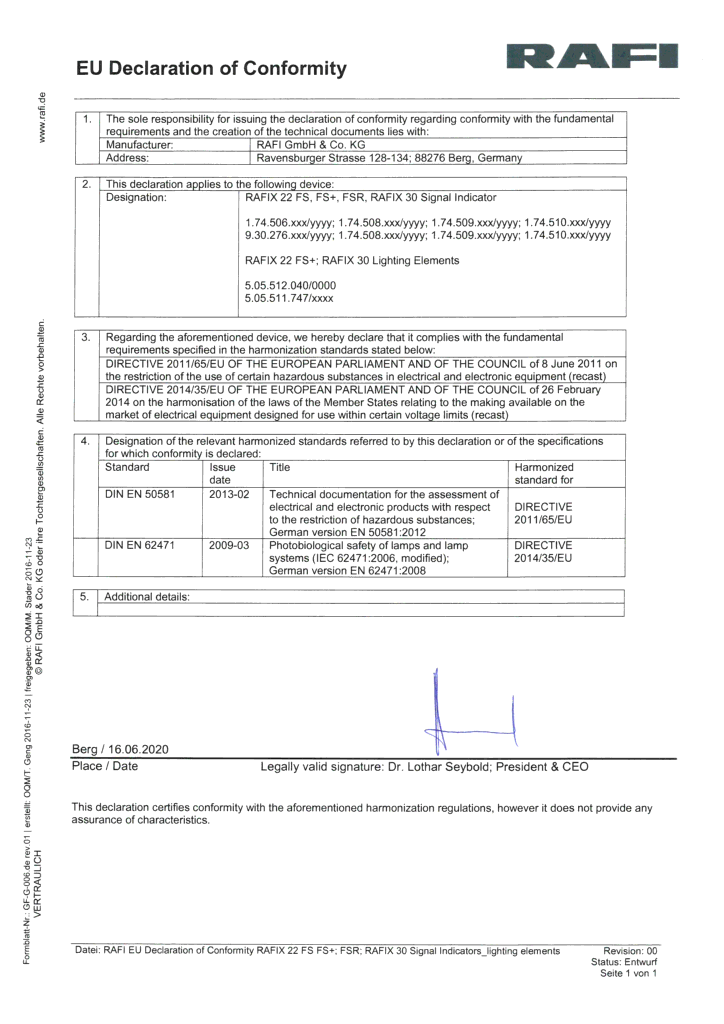

Declaration of conformity
